Summary

Defi Sports Display F is a multi-information display with a lap timer.

Release: March, 2018

  • Regarding compatibilities of OBDII and ADVANCE System, we don't have information on vehicles which are sold outside of Japan. Please make sure that your vehicle is applicable to this product before purchasing.
  • Please ask our official distributor/wholesaler near you about the price and the compatibility with your vehicle.

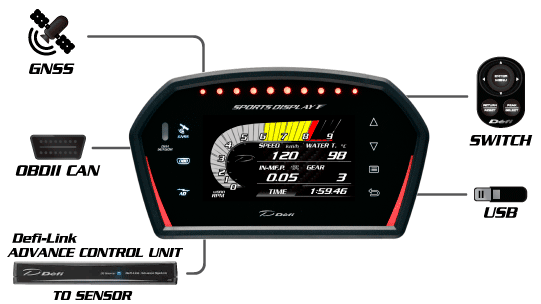

DSDF displays data obetained from ADVANCE system, OBDII connector, and GNSS (Global Navigation Satellite System including GPS). In addition, driving data can be recorded, replayed, and analyzed by connecting a USB flash drive (commercially available).

Lineup

DF15901
Defi Sports Display F (Display Unit Only; excludes Advance Control Unit and Sensors)
DF15902
Defi Sports Display F ADVANCE Control Unit Set (Set of DF15901, ADVANCE Control Unit and sensors)

Main Features and functions

4.2inches touch panel TFT color LCD, a dim sensor, and a low reflection glass enhances the operatability and the readability.

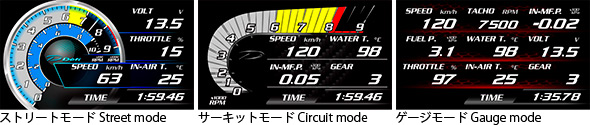

The display pattern can be selected from 3 patterns. (Patterns will be added later.)
Data obtained from 3 different devices can be displayed in one screen.
  • Location information from GNSS
  • ISO CAN data from OBDII
  • Sensor information by linking with the ADVANCE system
Sequential indicators of 10 red LEDs
Driving data can be recorded, replayed, and analyzed by using a commercially available USB flash drive. The system can be updated too.
*A PC wired to the internet is necessary to analyze data and update the system.
A separate switch unit which is easy to push by fingers with racing gloves is included in the package.
Mounting brackets are included and the paper templates are attached.
