Complete Entry-Level Damper Kit of
OE-Shape Shock Absorbers & Springs EDFC ACTIVE PRO

Specifications

OE Shape Sold as a Set for 1 Car Durable & Reliable H.B.S.

Only EnduraPro PLUS SP KIT

Twin-Tube Damping Force Adjustable EDFC Compatible

Product Specifications

OE Shape

OE Shape

EnduraPro SP KIT and EnduraPro PLUS SP KIT are high-performance OE-shape shock absorber kits. Designed to use with the vehicle's original (OE) spring and upper mount, their lower spring seat is shaped identical to the OE shock absorber. In addition to replacing worn or leaking OE dampers, exclusively-designed low-down springs included in the SP KIT allow for lowered ride height while also improving the ride quality and the cornering performance.

Sold as a Set for 1 Car

EnduraPro SP KIT / EnduraPro PLUS SP KIT

EnduraPro SP KIT and EnduraPro PLUS SP KIT are sold as a set for 1 car, combining EnduraPro / EnduraPro PLUS dampers with the matching low-down springs, to offer a complete entry model damper kit at a very affordable price.

High Durability and Superior Quality

Sealed Structure

A "sealed structure", attained by a new production formula,

combines high quality with reduced cost.

'Repairable' Unit of Parts → 'Sealed Structure' Fixed Unit

About the Sealed Structure

The top end of the shell pipe is narrowed, oil and gas are injected, and the whole unit is sealed by crimping the metal.

This new approach massively shortens the production process. As a result, we have succeeded in vastly cutting production cost.

Partial Production Process of EnduraPro SP KIT and EnduraPro PLUS SP KIT

Partial Production Process

High Strength and Durability

Fortified Installation Points

Example: Thickness comparison of front installation bracket for Honda Jazz/Fit GP5

OE
OE
EnduraPro
EnduraPro

For strut-type suspensions a thickness increase improves the strength and durability of the bracket attaching to the vehicle (steering knuckle) compared to OE shock absorbers. This higher rigidity of the knuckle's support also improves steering feel and makes the ride feel more stable. Please note that the thickness increase varies per vehicle model.

Fortified Shell Case with Large Oil Capacity

Shell case

The shell case, the key part of the shock absorber, is made of a high-strength material with tensile strength around 150% of the OE shell case. Weight increase is curbed by keeping the thickness of the cylinder wall the same. A bigger shell case diameter expands its oil capacity, for improved durability as well as a long-term stable damping force performance.

Example: Comparisons for the Honda Jazz/Fit (GP5)
Shell Case Tensile Strength
OE EnduraPro SP KIT
Tensile Strength (Mpa) 340 510
Shell Case Diameter
OE EnduraPro SP KIT
Front Shock Absorbers φ45 φ55
Rear Shock Absorbers φ45 φ50.8

Please note: tensile strength and diameter of shell case vary per vehicle model.

High-Performance Damper Oil

Damper Oil

Exhibiting a stable viscosity in a broad temperature range, the high-performance damper oil sustains smooth strokes and a reliable damping force under all kinds of circumstances. It has excellent anti-foaming properties that protect it from cavitation (bubble-forming), and is resistant to overheating, so that it works noiselessly even on rough roads. The damper oil keeps up its superior performance long-term, because it is also resistant to deterioration over time.

Hydraulic Bump Stopper (H.B.S.)

More comfort and higher durability at maximum passenger and cargo load.

How the H.B.S. Mechanism Works

Regular Shock Absorbers / Shock Absovers with H.B.S.

When regular shock absorbers fully stroke, their bump rubbers are compressed. The energy that is generated by that escapes as a repulsive force, which can disturb the vehicle's behavior. Furthermore, repeated full strokes can damage the damper.

In the same situation EnduraPro SP KIT and EnduraPro PLUS SP KIT, featuring H.B.S., internally convert the impact of the stroke to thermal energy (heat) and absorb it, strongly reducing the impact that disturbs the vehicle's behavior. With less damage to the dampers, H.B.S. also contributes to their durability.

Regular Shock Absorbers: Upward jolts and bounces

Driving over a bump, the vehicle jolts and bounces. It takes a while to regain control.

Shock Absorbers with H.B.S.: Smooth stabilization!

The vehicle smoothly processes the impact, does not bounce, and its behavior swiftly stabilizes.

The Hydraulic Bump Stopper (H.B.S.) Mechanism

Inactive H.B.S./H.B.S. Activated

In shock absorbers with inactive or no H.B.S., the operative valve (green) floats, and oil flows freely through the base valve ports. Resistance to the flow from the shim stack then, causes damping force.

Near full compression, when the piston rod strokes beyond a predetermined point, the operative valve is pushed down and activates H.B.S.: the base valve ports are narrowed, blocking the oil flow. This results in high damping force.

A relief valve serves to suppress sudden damping force increase, when the pressure in the cylinder exceeds its regular level.

The setup of the H.B.S. mechanism is optimized per vehicle model, with the right activation point and damping force.

Twin-Tube

Compared to the regular mono-tube system, twin-tube attains longer strokes with a smaller repulsive force, resulting in high ride comfort.

Mono-Tube / Twin-Tube

Roads may have all sorts of surface conditions. This calls for shock absorbers with ample stroke, that operate smoothly.

Thanks to flexible strokes, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speed.

Only EnduraPro PLUS SP KIT

Damping Force Adjustment

*EnduraPro PLUS SP KIT Only

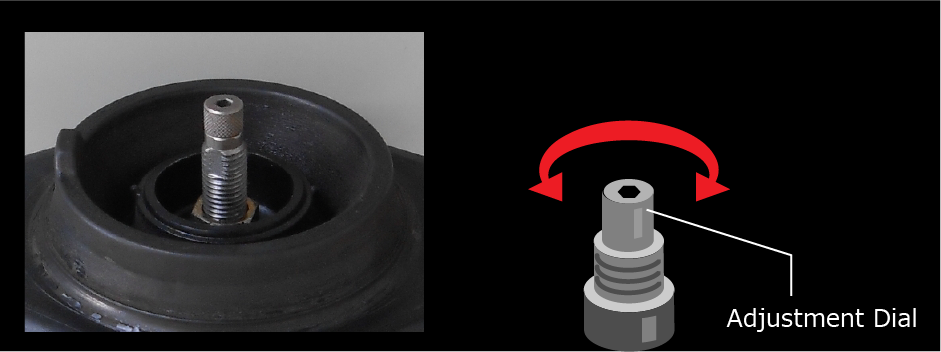

EnduraPro PLUS features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound. Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

Adjustment Dial

Adjust to Suit Driving Conditions

The above are examples; actual settings vary according to the vehicle's circumstances.

EDFC Compatible

*EnduraPro PLUS SP KIT Only

EnduraPro PLUS is compatible with the EDFC Series, which offer easy damping force adjustment from the driver's seat.*
* Some vehicle models excepted

A motor instead of adjustment dial

EDFC motor instead of the adjustment dial

Please note: the example in the photos is not EnduraPro PLUS

Remote adjustment from the cockpit!

EDFC Series Lineup

EDFC ACTIVE PRO

EDFC ACTIVE PRO

The Finest in Electronic Damping Force Controllers

Individual Wheel Control Cornering-Reactive

Accel/Deceleration-Reactive Speed-Reactive

Wireless Control

EDFC ACTIVE

EDFC ACTIVE

Electronic Damping Force Controller,
Featuring Auto-Adjustment

Accel/Deceleration-Reactive

Speed-Reactive (Optional Extra) Wireless Control

EDFC II

EDFC II

Basic Electronic Damping Force Controller
