Fully Made-to-Order Shock Absorbers, Springs, Upper Mounts etc for All Sorts of Vehicle Models
What is SPECIALIZED DAMPER ?
1. Fully Made-to-Order !
Under SPECIALIZED DAMPER program, we design and manufacture products fully tailored to each and every customer's needs.
We guarantee that SPECIALIZED DAMPER, produced one by one by skilled engineers, gives the highest level of customer satisfaction.
2. For Vehicle of Any Kind !
SPECIALIZED DAMPER can be produced for any type of vehicle; vintage cars, super cars, race cars, campers, K-cars, etc.
We can of course take vehicles for which TEIN products used to be available, but also we can even accept vehicles for which no company offers such performance parts.
For some strut type suspensions (spindle etc), OE shock absorbers with springs and upper mounts assembled have to be sent in and OE shock absorbers are used and modified to produce SPECIALIZED DAMPER, to make sure the correct fitting.
* SPECIALIZED DAMPER may not be available for some vehicle models, due to suspension structure.

S130 AE86 Y31
EXIGE EA11R E24
3. Any Specifications !
SPECIALIZED DAMPER can be made to desired specifications, from street use to circuit use, based on vast data and experience gained in and through mass-production products.
Besides ever-popular ride height adjustable dampers (thread-type & full-length adjustable type), we can also make OE-equivalent types (replacing inner components of OE shock absorbers with TEIN's).
SPECIALIZED DAMPER can be designed to be compatible with EDFC series (Electronic Damping Force Controller) to enable in-car damping force adjustment.
*Some features and/or mechanisms may not be available for some vehicle models, due to suspension structure.

<Examples of Shock Absorber Specifications>
Street Use
Twin-Tube Structure
Thread-Type Ride Height Adjustment
16-Level Damping Force Adjustment (Comp./Rebound Together)
For Porsche 911 (993)
Circuit Use
Mono-Tube Structure
Full-Length Ride Height Adjustment
16-Level Damping Force Adjustment
(Comp./Rebound Separately)
For Honda Fit (GE8)
Street Use
Twin-Tube Structure
OE-Equivalent Shape
16-Level Damping Force Adjustment (Comp./Rebound Together)
For Mitsubishi Starion (A183A)
4. Not Only For Shock Absorbers !
We can also design and produce related parts and components such as coil springs, upper mounts, stabilizer link rods, camber adjustable knuckle brackets etc.

Coil Spring Pillow Ball Upper Mount
Coil Spring Pillow Ball Upper Mount
Adjustable Stabilizer Link Rod Camber Adjustable Knuckle Bracket
Adjustable Stabilizer Link Rod Camber Adjustable Knuckle Bracket
5. Overhaul / Revalving Available !
Just like regular off-the-shelf TEIN dampers, SPECIALIZED DAMPER is available for overhaul to restore its performance like new. With our excellent post-sales service, customers can enjoy SPECIALIZED DAMPER for a very long time along with their beloved cars.
SPECIALIZED DAMPER is also customizable (damping force change, stroke change etc.) at the time of overhaul.

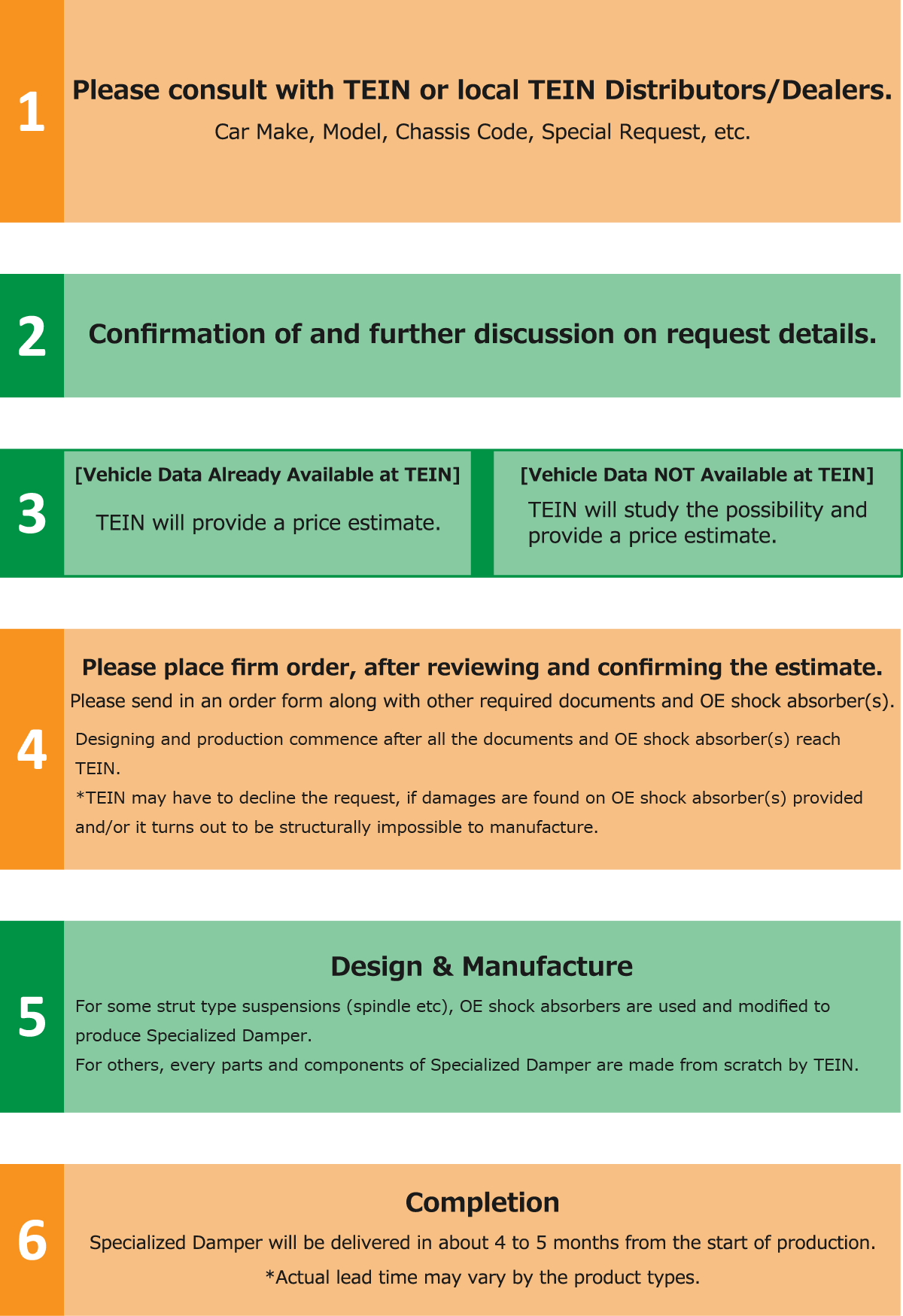

Order Procedure
Top of page
Pricing
Price of Specialized Damper varies one by one, depending on vehicle types and damper specifications.
Prices below are based on standard specification and shown for your reference only.
We will give you an estimate after consultation.
Required Data and Documents
1. Special Order Form (to be provided after consultation)
2. Acceptance Form (to be provided after consultation)
3. Special Data Sheet (to be provided after consultation)
4. Other Required Materials (vehicle certificate, OE parts, etc.)
Standard Specification
1. Piston rod to accommodate OE upper mount (except if pillow ball upper mount is provided)
2. Twin-tube structure, with 16-level damping force adjustment feature (compression & rebound together)*
3. Threaded type ride height adjustment system
4. Available for overhaul / revalving (pay service)
Please consult TEIN for other specifications available.
*Equivalent to Super Street setting
Production Time
Approximately 3 weeks from the start of production
Example Price (does not include sales tax) (Price listed per pair)
Twin-tube / strut Made w/ TEIN parts/components only $950~
Made from OE & TEIN parts/components $900~
Twin-tube / SA Made w/ TEIN parts/components only $650~
Made from OE & TEIN parts/components $650~
Inverted Mono-tube / strut Made w/ TEIN parts/components only $1,500~
Made from OE & TEIN parts/components(only if available) $1,600~
Mono-Tube / SA Made w/ TEIN parts/components only $750~
Optional Parts - Example Price (does not include sales tax)
Pillow Ball Upper Mount Set of 2 $280~ Camber adjustment is only available for Ft, if applicable.
Reinforced Rubber Upper Mount Set of 2 $550~ Fixed camber
Custom-Made Spring Set of 2 $300~ OE shape
Ride Height Adjustment System (H.A.S.) Set of 2 $250~ For Custom-Made Spring
< Remark >
*Prices shown above apply to basic spec model.
*Damper prices cover cost of producing single damper (base charge, assembly charge, case & inner parts charges).
*Estimated production time is approximately 3 weeks from the start of production (that's when we receive your damper AND final order), however the actual time may vary due to various circumstances beyond our control.
*Springs and/or helper springs are sold separately.
*TEIN assumes NO responsibility for any defect in OE part/component submitted by you.
*Damper will be produced to OE configuration where ride height adjustment is NOT available due to narrow clearance or structure.
Example (does not include sales tax)
1) Twin Tube Damper (Non damping force adjustment)
Ft: Twin Tube Ride Height Adjustable, OE Spindle Modification (OE shock provided to TEIN)
Rr: Twin Tube Ride Height Adjustable
NO Top mount (Use OE top mount), included all 4 springs
$2,500~ (Included freight cost to TEIN JAPAN)
2) Twin Tube Damper (Damping force adjustment)
Ft: Twin Tube Ride Height Adjustable
Rr: Twin Tube Ride Height Adjustable
Front Top mount, No rear Top mount, included all 4 springs
$2,600~
3) Mono Tube Damper (Damping force adjustment)
Ft: Mono Tube Ride Height Adjustable OE Spindle Modification (OE shock provided to TEIN)
Rr: Mono Tube Ride Height Nonadjustable
Front Top mount, No rear Top mount, included all 4 springs (Special design Rear spring)
$3,900~ (Included freight cost to TEIN JAPAN)
Optional Parts Prices
Prices shown are MSRP incl. Tax (MSRP excl. Tax).
We accept orders only for these optional parts.
[Pillow Ball Upper Mount] *Materials used may vary by the shapes and/or purpose of use.
Camber Adjustable
MSRP $410.00
Set of 2 (right & left)
Camber & Caster Adjustable
MSRP $1140.00
Set of 2 (right & left)
Rigid
MSRP $390.00
Set of 2 (right & left)
[Reinforced Rubber Upper Mount] *Materials used may vary by the shapes and/or purpose of use.
For Strut
MSRP $640.00
Set of 2 (right & left)
*Either fixed or floating bearing,
depending on the vehicle models.
For Wishbone / Multi-Link
MSRP $270.00
Set of 2 (right & left)
[Custom-Made Spring]
MSRP $260.00 / pc
* Sold as a set of 2 springs.
Designed and manufactured to desired spring rate and/or ride height setting.
Various types/shapes available, such as OE-equivalent springs, H.A.S.-compatible springs, straight springs, tapered springs etc.
[H.A.S. (Height Adjust System)] [Spring Adapter]
MSRP $190.00 / pc
*Materials used may vary by the shapes and/or purpose of use.
MSRP $44.00 / pc
*Mainly for using standardized spring with OE mount.
[S.L.C. (Side Layout Click)] [ZT Coating on ADJ Tube] [Adjustable Stabilizer Link Rod]
MSRP $160.00
Set of 2
*Required for some vehicle models to enable the use of EDFC series.
MSRP $13.00 / pc
*Optional treatment for thread-type ride height adjustment. NOT applicable for strut type with trade-in used.
MSRP $162.00
Set of 2
[Pillow Ball Eye Ring] [3-Way Damping Force Adjustment] [Reservoir Tank Hose]
MSRP $110.00 / pc
* Eye ring bracket with pillow ball bush, instead of rubber bush.
MSRP $510.00 / pc
*Optional feature for comp./rebound separate damping force adjustment, to enable 32-level high-speed comp., 16-level low-speed comp. and 16-level rebound adjustments separately.
MSRP $150.00 / pc
*Optional feature for comp./rebound separate damping force adjustment, to relocate reservoir tank to the desired position.
[Camber Adjustable Knuckle Bracket] [Camber Washer] [Various Brackets]
MSRP $*ASK.00
Set of 2
*Camber angle can be adjusted by replacing camber washers with the ones of different offset (sold separately). Price includes a set of 2 camber washers. Offset: available in 0.5mm increments, up to 3.5mm
MSRP $85.00
Set of 2
*Camber angle can be adjusted by replacing camber washers with the ones of different offset. Offset: available in 0.5mm increments, up to 3.5mm
MSRP $28.00 / pc
*Various brackets can be made/attached for anchoring brake hose, ABS sensor harness, stabilizer link, etc.
