ACURA  RSX 02-04 DC5
S.TECH
Installation Manual
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -

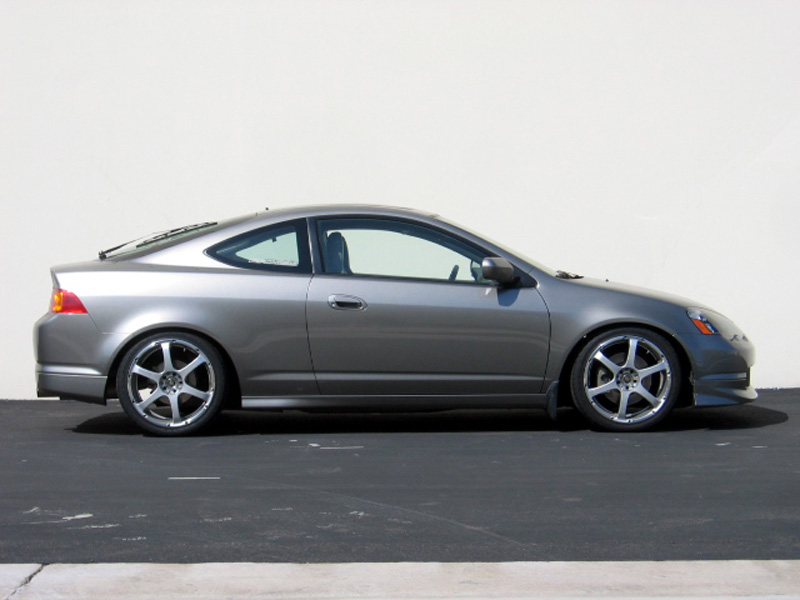

FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.5  310  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8.8  490  - -
NOTES


HIGH.TECH
Installation Manual
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -28  -1.1 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -20  -0.79 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7.9  440  - -
NOTES


TEIN BASIC Damper
Installation Manual
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -52  -2.05 -38.0 / -1.5 to -67.0 / -2.64
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -35.0 / -1.38 to -63.0 / -2.48
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SW080-01175 +1.0 / 60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SA100-01150 +2.0 / 110.0 to -1.0 / -60.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Installation Manual
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -52  -2.05 -38.0 / -1.5 to -67.0 / -2.64
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -35.0 / -1.38 to -63.0 / -2.48
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SW080-01175 +2.0 / 110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SA100-01150 +2.0 / 110.0 to -2.0 / -110.0
NOTES


TEIN Super Street Damper
With Pillowball Uppermount
Installation Manual
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDKU4-K4469
Motor Kit Part No. EDK05-10140
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -45  -1.77 -30.0 / -1.18 to -55.0 / -2.17
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -38  -1.5 -35.0 / -1.38 to -58.0 / -2.28
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SW080-01175 -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SA100-01150 -
NOTES


Type FLEX Damper
Installation Manual
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDKU4-K4469
Motor Kit Part No. EDK05-12140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -55  -2.17 -20.0 / -0.79 to -79.0 / -3.11
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -45  -1.77 -30.0 / -1.18 to -61.0 / -2.4
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 12  670  SA120-01150 -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 14  780  S8A23-0U140 0 / 0 to 0 / 0
NOTES


Type N1 Damper
Steel
Installation Manual
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -84  -3.31 -72.0 / -2.83 to -103.0 / -4.06
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -82  -3.23 -67.0 / -2.64 to -90.0 / -3.54
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 18  1010  RS180-B1150 +2.0 / 110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 28  1570  RS280-A1100 +2.0 / 110.0 to -2.0 / -110.0
NOTES


Type HG Damper
Installation Manual
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -10  -0.39 +2.0 / 0.08 to +16.0 / 0.63
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 2  0.08 +25.0 / 0.98 to -14.0 / -0.55
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  S4A02-01060 +0.5 / 30.0 to -0.5 / -30.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8.5  480  S4A03-01085 +0.5 / 30.0 to -0.5 / -30.0
NOTES

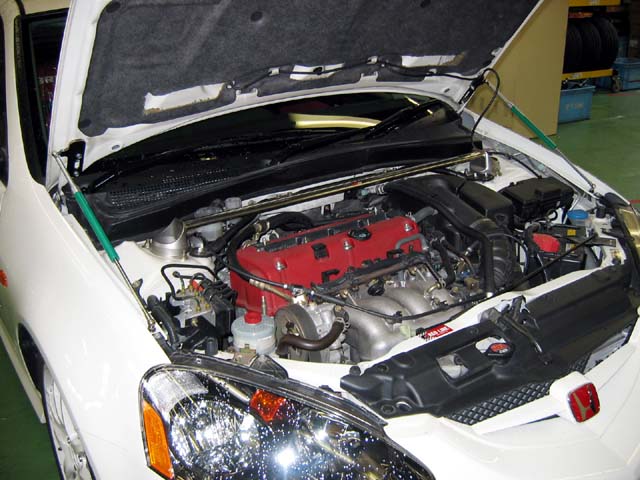

HOOD DAMPER
Installation Manual
Upper Mt. Ft   - Upper Mt. Rr   -
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
PHOTO  PHOTO ZOOM (RIGHT)  PHOTO ZOOM (LEFT)
NOTES
