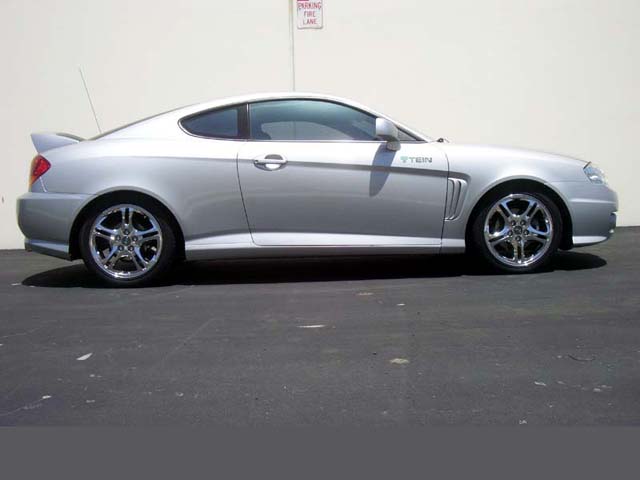

TIBURON 03-08 GK27

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -43  -1.69 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -34  -1.34 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.6  260  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.6  200  - -
NOTES

With Pillowball Uppermount	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -14.0 / -0.55 to -57.0 / -2.24 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -21  -0.83 -16.0 / -0.63 to -35.0 / -1.38
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  8  450  SY080-01225 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SC050-01250 +2.0 / +110.0 to -2.0 / -110.0
NOTES
