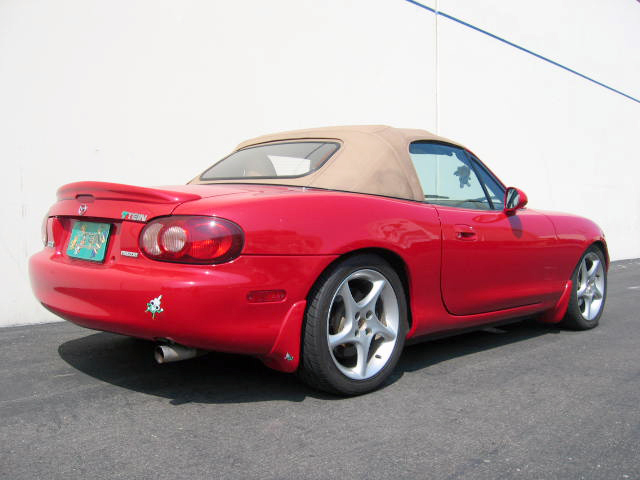

MAZDA  Miata 99-05 NB8C
HOOD DAMPER
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -  - -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -  - -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 -  -  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 -  -  - -
NOTES


S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -22  -0.87 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -30  -1.18 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.2  230  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.1  170  - -
NOTES


Street Basis
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -25.0 / -0.98 to -69.0 / -2.72
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -6.0 / -0.24 to -67.0 / -2.64
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SW070-01175 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SW060-01175 +1.0 / +60.0 to -1.0 / -60.0
NOTES


Street Advance
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -1.0 / -0.04 to -3.0 / -0.12
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 0 / 0 to -3.0 / -0.12
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SW070-01175 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SW060-01175 +1.0 / +60.0 to -1.0 / -60.0
NOTES


TEIN BASIC Damper
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -32.0 / -1.26 to -63.0 / -2.48
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -29.0 / -1.14 to -60.0 / -2.36
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SA070-01150 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SA060-01150 +1.0 / +60.0 to -1.0 / -60.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-10100
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -32.0 / -1.26 to -63.0 / -2.48
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -29.0 / -1.14 to -60.0 / -2.36
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SA070-01150 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SA060-01150 +2.0 / +110.0 to -1.0 / -60.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12120
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -7  -0.28 +50.0 / +1.97 to -36.0 / -1.42
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -29  -1.14 -8.0 / -0.31 to -43.0 / -1.69
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SW070-01175 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SA060-01150 +2.0 / +110.0 to -2.0 / -110.0
NOTES


Type MFP Damper
Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12120
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -33  -1.3 +24.0 / +0.94 to -61.0 / -2.4
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -38  -1.5 -17.0 / -0.67 to -52.0 / -2.05
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SA100-01150 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SA080-01150 +2.0 / +110.0 to -2.0 / -110.0
NOTES
