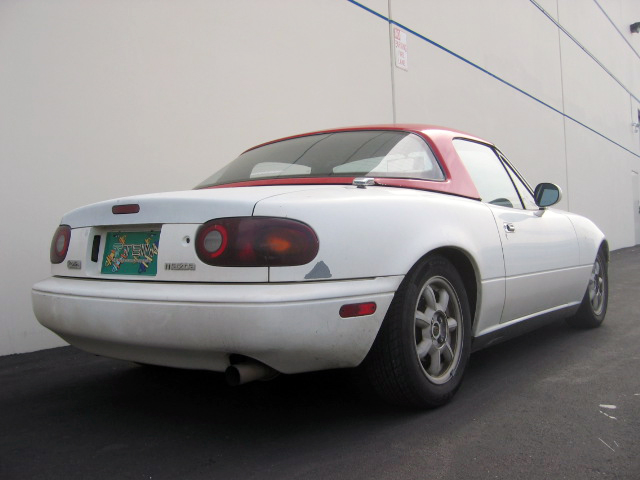

Miata 90-98 NA8C/6CE

Installation Manual	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -29  -1.14 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -19  -0.75 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.2  230  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3  170  - -
NOTES

Installation Manual	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -38.0 / -1.5 to -69.0 / -2.72 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -41  -1.61 -31.0 / -1.22 to -59.0 / -2.32
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SA070-01150 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SA060-01150 +1.0 / +60.0 to -1.0 / -60.0
NOTES

Without Pillowball Uppermount Installation Manual	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Available Controller Kit Part No. EDKU4-K4469 Motor Kit Part No. EDK05-10100 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -38.0 / -1.5 to -66.0 / -2.6 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -41  -1.61 -29.0 / -1.14 to -57.0 / -2.24
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SA070-01150 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SA060-01150 +2.0 / +110.0 to -1.0 / -60.0
NOTES

Installation Manual	Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDKU4-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -10  -0.39 +48.0 / +1.89 to -39.0 / -1.54 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -19  -0.75 +2.0 / +0.08 to -33.0 / -1.3
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SW070-01175 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SA060-01150 +2.0 / +110.0 to -2.0 / -110.0
NOTES
