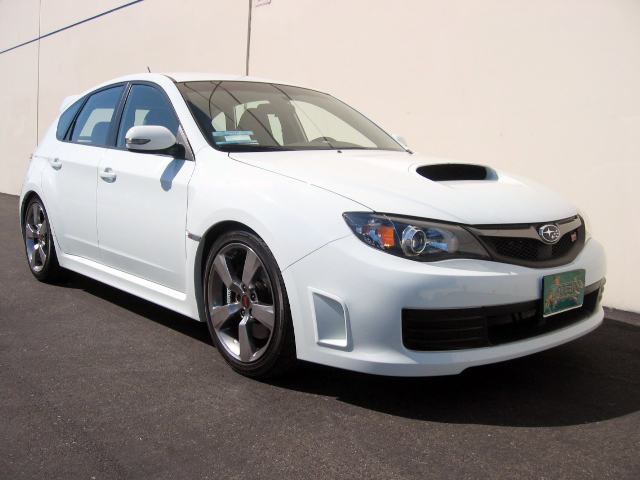

IMPREZA STI 08+ GRF

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -25  -0.98 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -20  -0.79 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.5  250  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.9  220  - -
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -22.0 / -0.87 to -63.0 / -2.48 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 -10.0 / -0.39 to -61.0 / -2.4
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SB070-01200 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  S8034-01050 +1.0 / +60.0 to -1.0 / -60.0
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -19.0 / -0.75 to -61.0 / -2.4 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 -6.0 / -0.24 to -61.0 / -2.4
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SB070-01200 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SY050-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES

	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -2.0 / -0.08 to -66.0 / -2.6 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 +8.0 / +0.31 to -68.0 / -2.68
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SW090-01175 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SB070-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -20.0 / -0.79 to -61.0 / -2.4 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 +8.0 / +0.31 to -55.0 / -2.17
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  10  560  SW100-01175 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  8  450  SB080-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469x2 Motor Kit Part No. EDK05-12140(Compression) / EDK05-12120(Bound) Strut Kit Part No. EDK06-K4474(Compression) / -(Bound)
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -  - - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -  - -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  12  670  RS120-E1175 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  10  560  RS100-E1175 +2.0 / +110.0 to -2.0 / -110.0
NOTES
