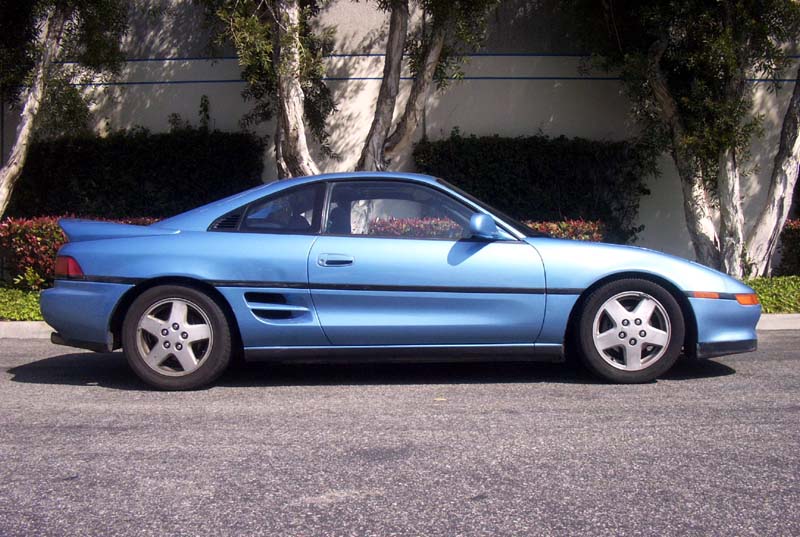

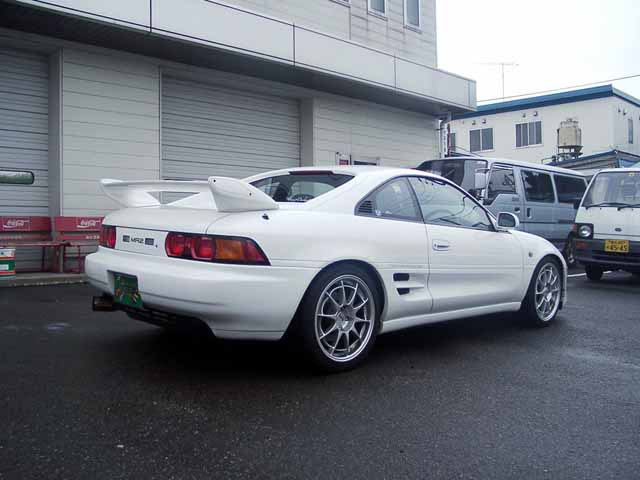

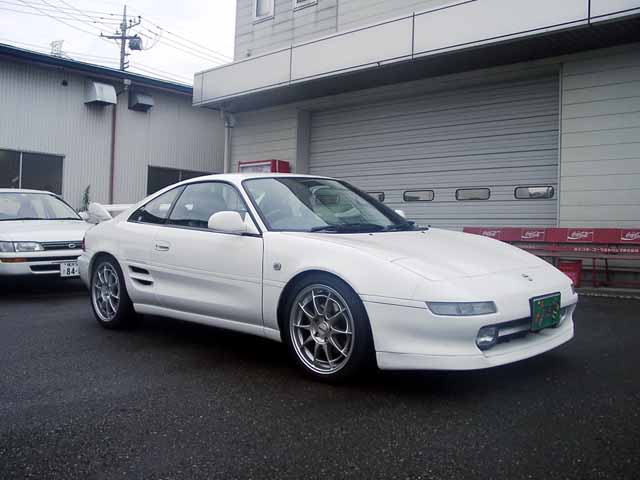

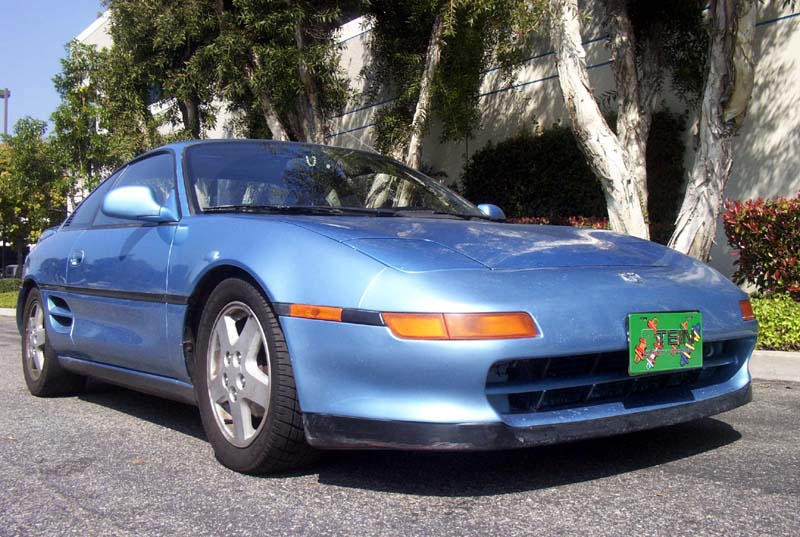

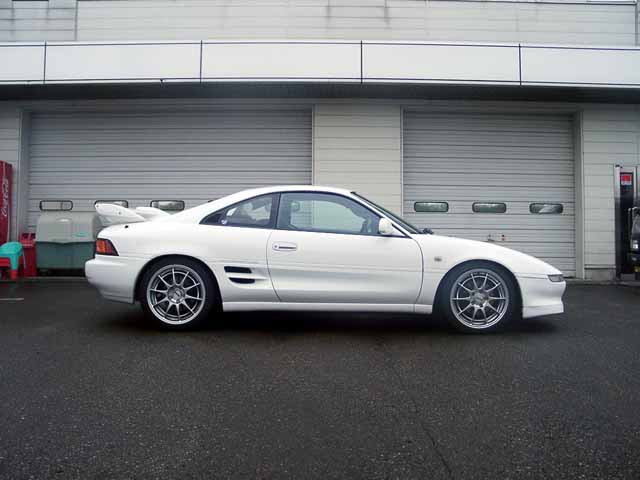

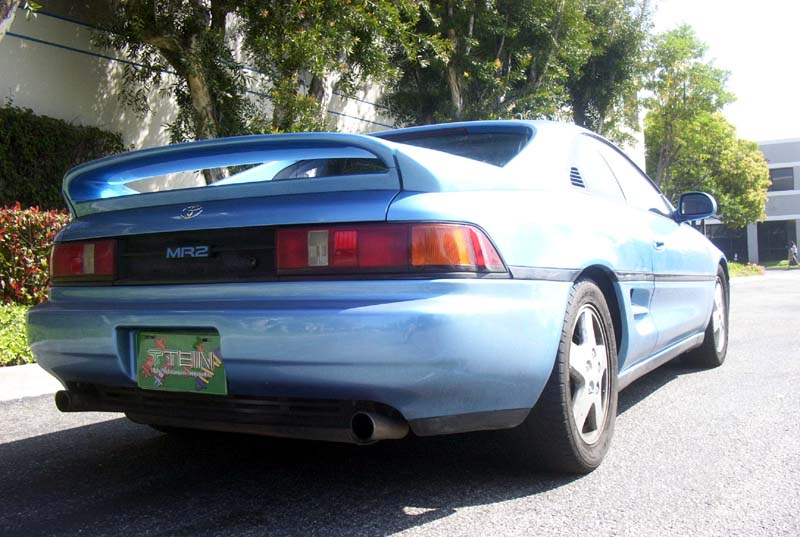

TOYOTA  MR2 90-99 SW20L/21L
S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 2.75  150  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.9  270  - -
NOTES


HIGH.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -24  -0.94 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -28  -1.1 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 2.5  140  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.4  250  - -
NOTES


TEIN BASIC Damper
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -44.5  -1.75 -29.0 / -1.14 to -61.96 / -2.44
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -42.5  -1.67 -29.0 / -1.14 to -59.6 / -2.35
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  SQ040-01175 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SJ080-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -45  -1.77 -29.0 / -1.14 to -62.0 / -2.44
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -43  -1.69 -29.0 / -1.14 to -60.0 / -2.36
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  SQ040-01175 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SJ080-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-14140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -6.0 / -0.24 to -65.0 / -2.56
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -44  -1.73 -15.0 / -0.59 to -72.0 / -2.83
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  SQ040-01175 +2.0 / +110.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SB080-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES


Type HT Damper

Road Clearance
(Suggested Ride Height)		 -36mm -47mm
