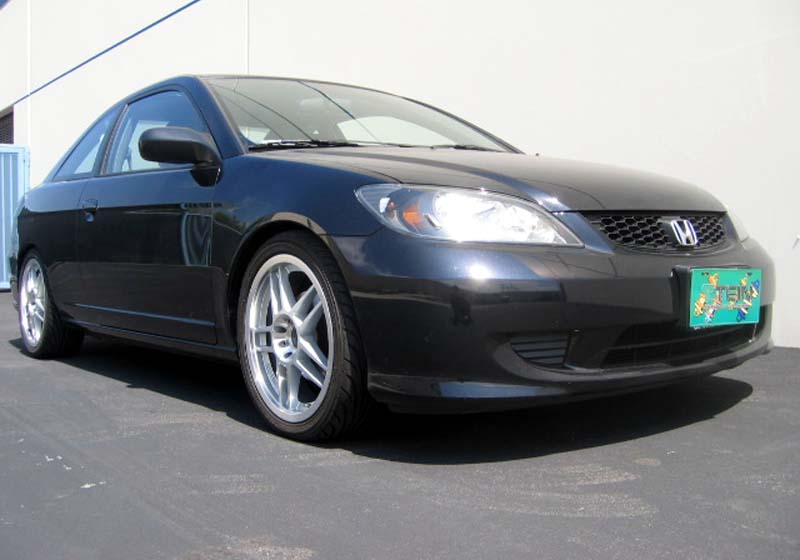

HONDA  CIVIC Si 03-05  EP3
S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -32  -1.26 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 9.2  510  - -
NOTES


HIGH.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -20  -0.79 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -17  -0.67 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.6  260  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8.5  480  - -
NOTES


Street Basis
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -58  -2.28 -31.0 / -1.22 to -83.0 / -3.27
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -60  -2.36 -35.0 / -1.38 to -85.0 / -3.35
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SB060-01200 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SA080-01150 +1.0 / +60.0 to -1.0 / -60.0
NOTES


Street Advance
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -58  -2.28 -1.0 / -0.04 to -3.0 / -0.12
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -60  -2.36 -1.0 / -0.04 to -3.0 / -0.12
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SB060-01200 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SA080-01150 +1.0 / +60.0 to -1.0 / -60.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-10140
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -44  -1.73 -29.0 / -1.14 to -67.0 / -2.64
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -49  -1.93 -38.0 / -1.5 to -93.0 / -3.66
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SB060-01200 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SA080-01150 +2.0 / +110.0 to -2.0 / -110.0
NOTES


TEIN Super Street Damper
With Pillowball Uppermount
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -32.0 / -1.26 to -49.0 / -1.93
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -50  -1.97 -19.0 / -0.75 to -66.0 / -2.6
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SW060-01175 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SA080-01150 +2.0 / +110.0 to -2.0 / -110.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -11.0 / -0.43 to -56.0 / -2.2
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -50  -1.97 -31.0 / -1.22 to -70.0 / -2.76
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 12  670  SA120-01150 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 14  780  S8A23-0U140 0 / 0 to 0 / 0
NOTES
