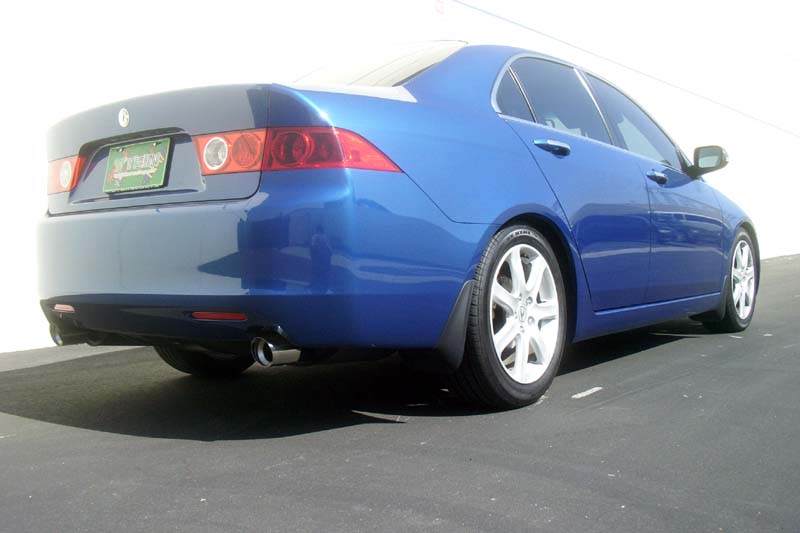

ACURA  TSX 04-09 CL9
S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -44  -1.73 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -34  -1.34 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6.2  350  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 2.7  150  - -
NOTES


HIGH.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -29  -1.14 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -19  -0.75 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.7  320  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.4  190  - -
NOTES


Euro Damper
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -42  -1.65 -5.0 / -0.2 to -88.0 / -3.46
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -6.0 / -0.24 to -62.0 / -2.44
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SY080-01225 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  SC040-01250 +1.0 / +60.0 to -1.0 / -60.0
NOTES


Street Advance
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -42  -1.65 -5.0 / -0.2 to -88.0 / -3.46
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -6.0 / -0.24 to -62.0 / -2.44
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SY080-01225 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  SC040-01250 +1.0 / +60.0 to -1.0 / -60.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -51  -2.01 -12.0 / -0.47 to -85.0 / -3.35
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -15.0 / -0.59 to -61.0 / -2.4
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SB100-01200 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SG060-01250 +2.0 / +110.0 to -1.0 / -60.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12120
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -49  -1.93 -9.0 / -0.35 to -83.0 / -3.27
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -34  -1.34 +5.0 / +0.2 to -66.0 / -2.6
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SL100-01200 +2.0 / 110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SM060-01250 +2.0 / 110.0 to -1.0 / -60.0
NOTES
