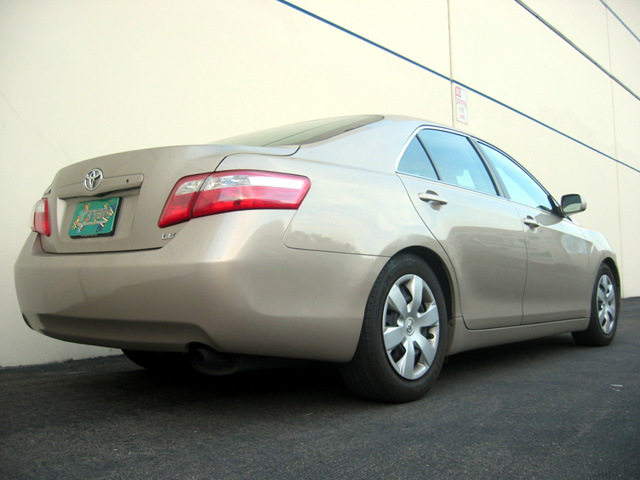

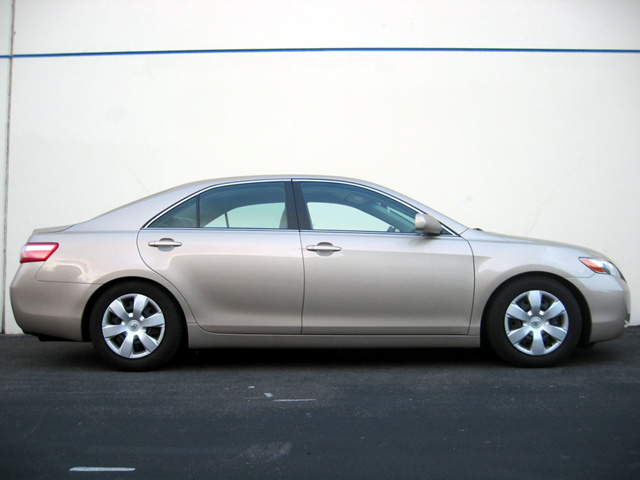

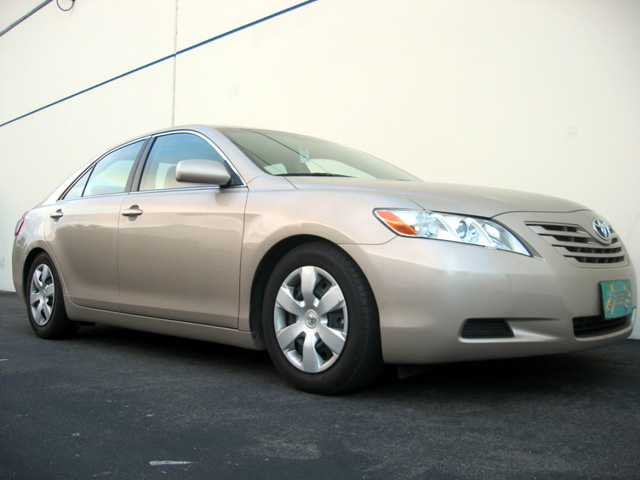

CAMRY 07-11 ACV40L

	Upper Mt. Ft   - Upper Mt. Rr   -
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -40  -1.57 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -39  -1.54 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3  170  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.1  170  - -
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -47  -1.85 -35.0 / -1.38 to -74.0 / -2.91 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -40  -1.57 -29.0 / -1.14 to -67.0 / -2.64
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +2.0 / +110.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3  170  SG030-01250 +2.0 / +110.0 to 0 / 0
NOTES
