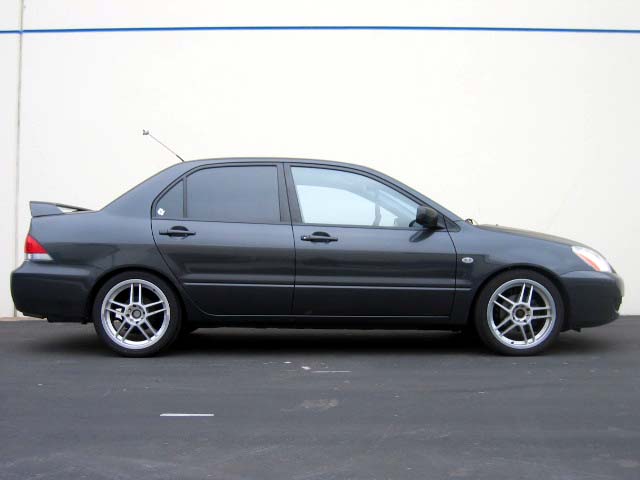

LANCER ES 06-07 CS6A

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -23  -0.91 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5.2  290  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.6  150  - -
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -27.0 / -1.06 to -51.0 / -2.01 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -20  -0.79 +1.0 / +0.04 to -38.0 / -1.5
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SY070-01225 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SV050-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -35  -1.38 -27.0 / -1.06 to -51.0 / -2.01 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -20  -0.79 +1.0 / +0.04 to -38.0 / -1.5
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SY070-01225 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SV050-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES
