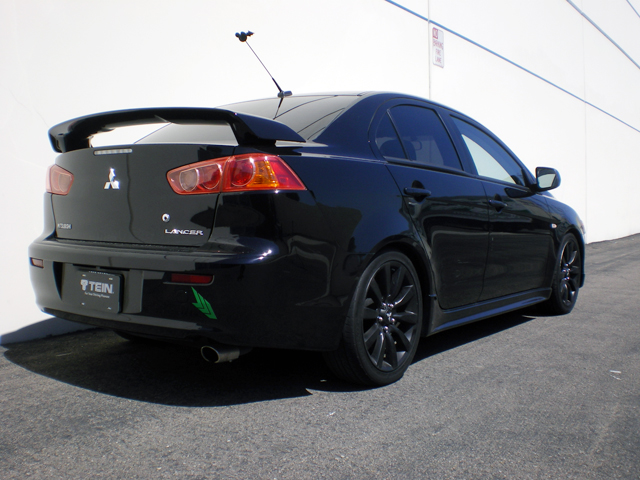

LANCER 09+ CY5A

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.9  220  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.8  160  - -
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -49  -1.93 -31.0 / -1.22 to -62.0 / -2.44 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -27  -1.06 +7.0 / +0.28 to -43.0 / -1.69
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SY050-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES
