| Upper Mt. Ft OEM |
Upper Mt. Rr OEM |
|
| EDFC Availability |
Not Available |
| Controller Kit Part No. |
- |
| Motor Kit Part No. |
- |
| Strut Kit Part No. |
- |
|
|
|
RIDE HEIGHT
|
| FRONT |
| Approx. |
Height Adjust Range |
| mm |
inch |
Max/Min(mm/inch) |
| -25 |
-0.98 |
+3.0 / +0.12 to -45.0 / -1.77 |
|
|
| REAR |
| Approx. |
Height Adjust Range |
| mm |
inch |
Max/Min(mm/inch) |
| -46 |
-1.81 |
-25.0 / -0.98 to -67.0 / -2.64 |
|
|
|
|
SPRING
|
| FRONT |
| SPRING RATE / PART No. |
Replacement Availability |
| kgf/mm |
lbs/in |
Part # |
Max/Min(kgf/mm-lbs/in) |
| 6 |
340 |
BD060-01225 |
+1.0 / +60.0 to -1.0 / -60.0 |
|
|
| REAR |
| SPRING RATE / PART No. |
Replacement Availability |
| kgf/mm |
lbs/in |
Part # |
Max/Min(kgf/mm-lbs/in) |
| 8 |
450 |
S6F13-0U080 |
- |
|
|
|
| NOTES |
| Mfg date (after 9/15/2010) require OEM Sway Bar Endlink #54830-2M000
|
|

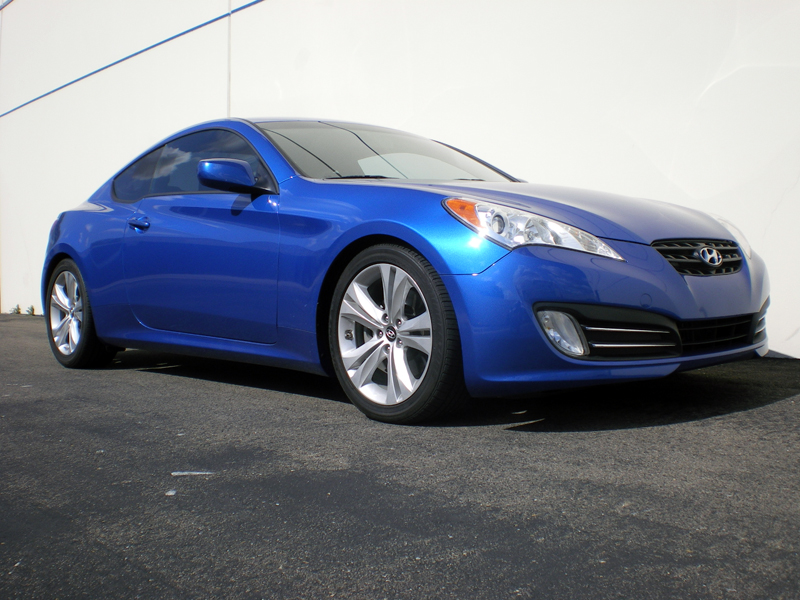

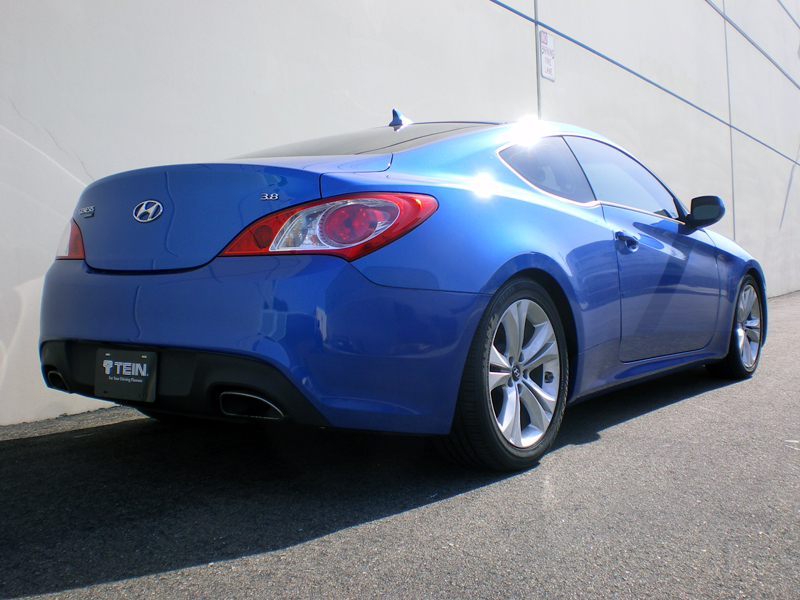

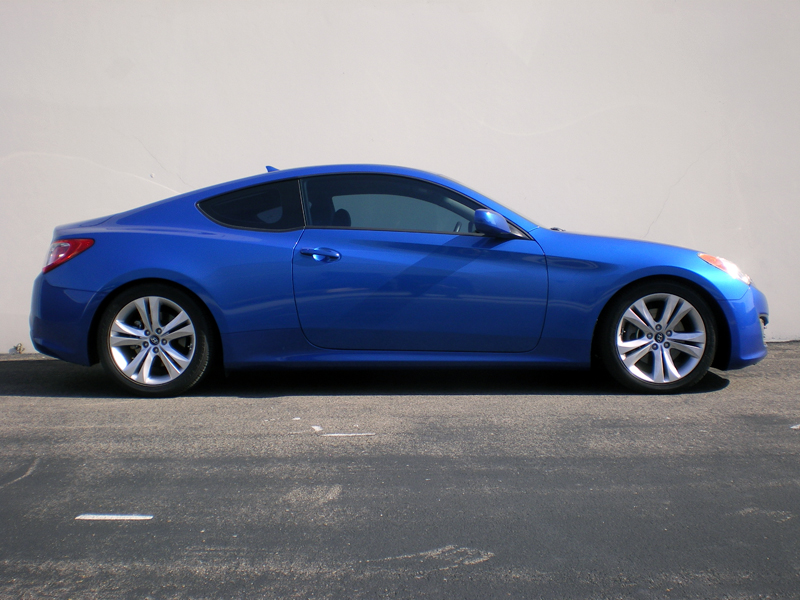

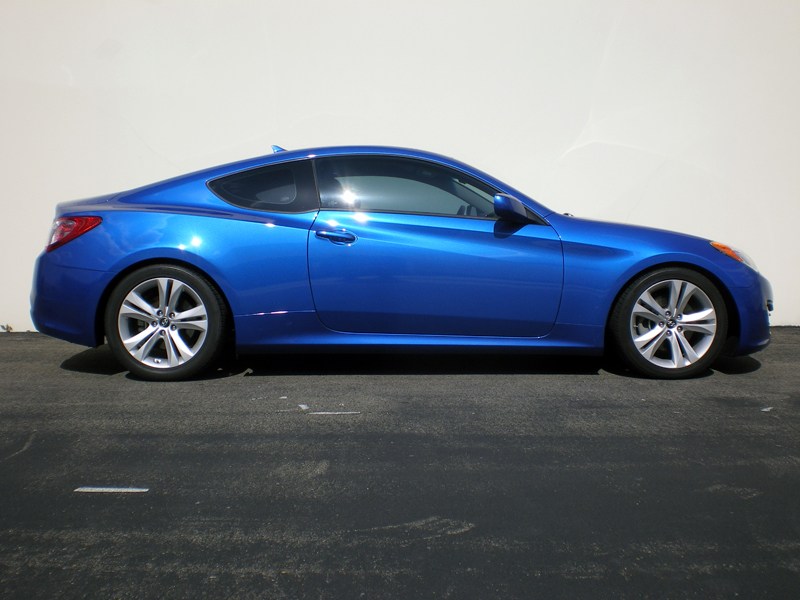

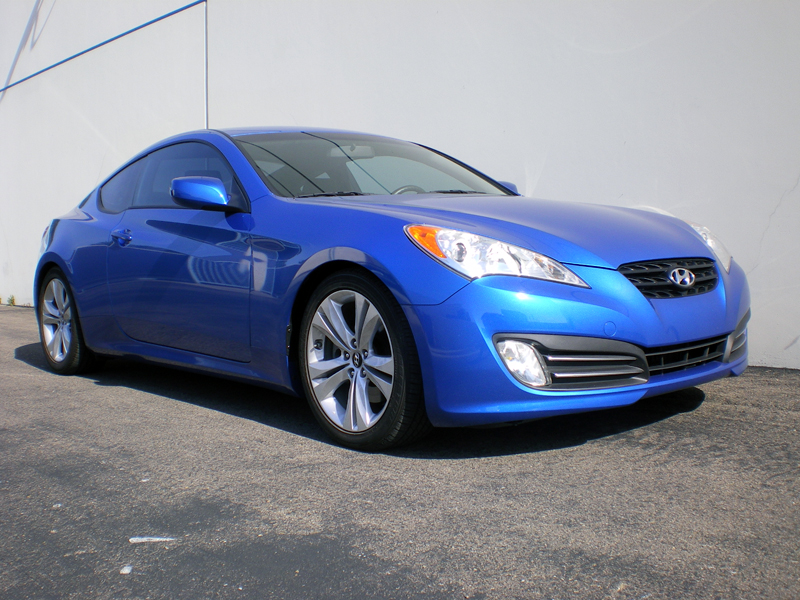

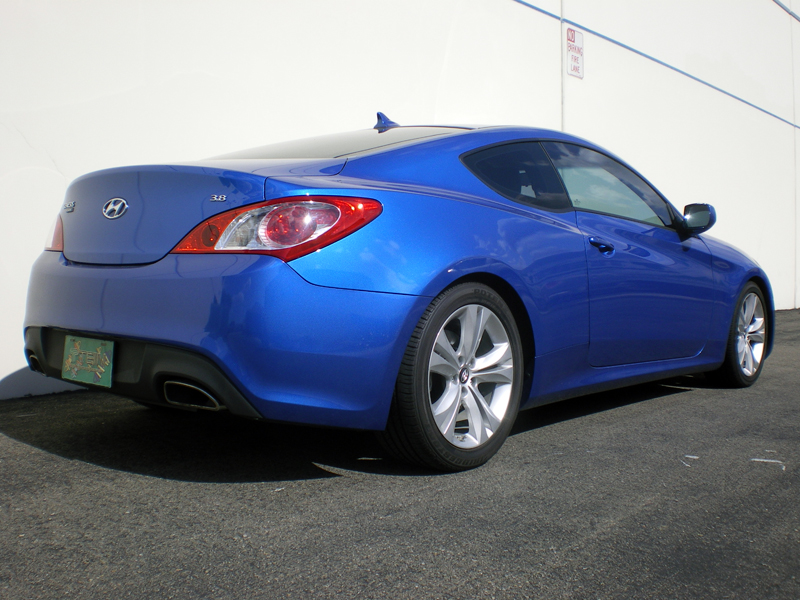

GENESIS COUPE (V6) 10+ BK14
