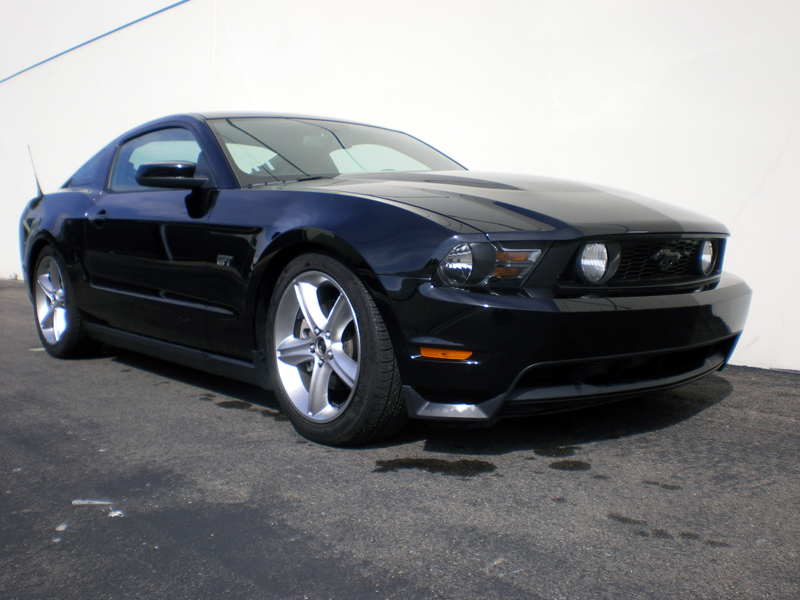

FORD  MUSTANG GT 10+ -
Type FLEX Damper
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   OEM
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-10140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -35  -1.38 -11.0 / -0.43 to -54.0 / -2.13
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -45  -1.77 -30.0 / -1.18 to -58.0 / -2.28
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 9  500  SL090-01200 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.9  330  S6F41-0U059 -
NOTES
