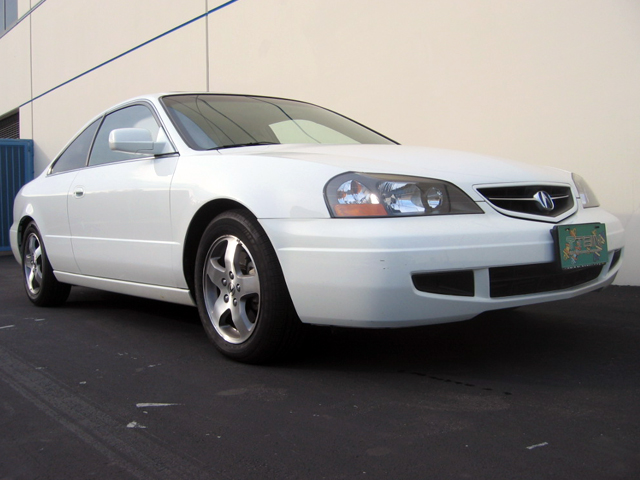

CL 01-03 YA4

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -45  -1.77 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -46  -1.81 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5.3  300  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.8  160  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.8  270  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.5  140  - -
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -42.0 / -1.65 to -75.0 / -2.95 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -24.0 / -0.94 to -66.0 / -2.6
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SI070-01250 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SG040-01250 +1.0 / +60.0 to -1.0 / -60.0
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -48.0 / -1.89 to -84.0 / -3.31 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -38.0 / -1.5 to -64.0 / -2.52
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SI070-01250 - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SG040-01250 -
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -48.0 / -1.89 to -84.0 / -3.31 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -38.0 / -1.5 to -64.0 / -2.52
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SI070-01250 - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SG040-01250 -
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -50  -1.97 -36.0 / -1.42 to -77.0 / -3.03 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -20.0 / -0.79 to -59.0 / -2.32
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SM070-01250 - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SC040-01250 -
NOTES
