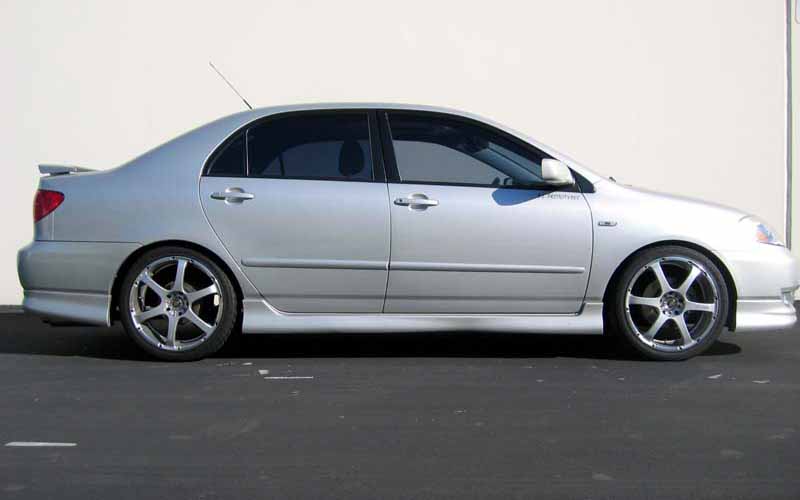

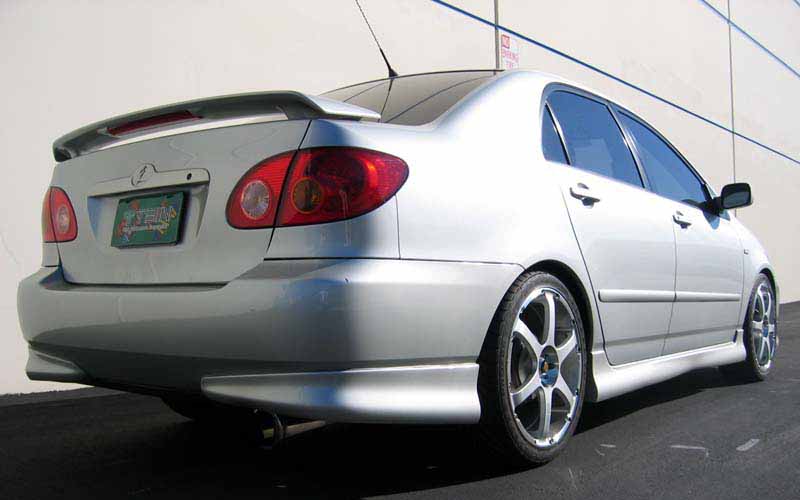

COROLLA 03+ ZZE130L

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -59  -2.32 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -61  -2.4 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.5  140  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.8  160  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -44  -1.73 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -46  -1.81 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.3  130  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.7  150  - -
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -60  -2.36 -29.0 / -1.14 to -76.29 / -3.0 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -66  -2.6 -39.0 / -1.54 to -96.6 / -3.8
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SB060-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SB060-01200 +2.0 / +110.0 to -1.0 / -60.0
NOTES
