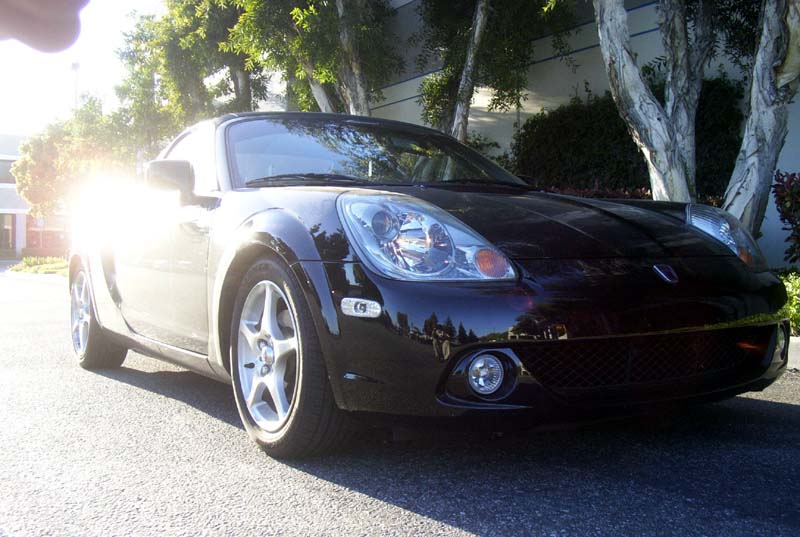

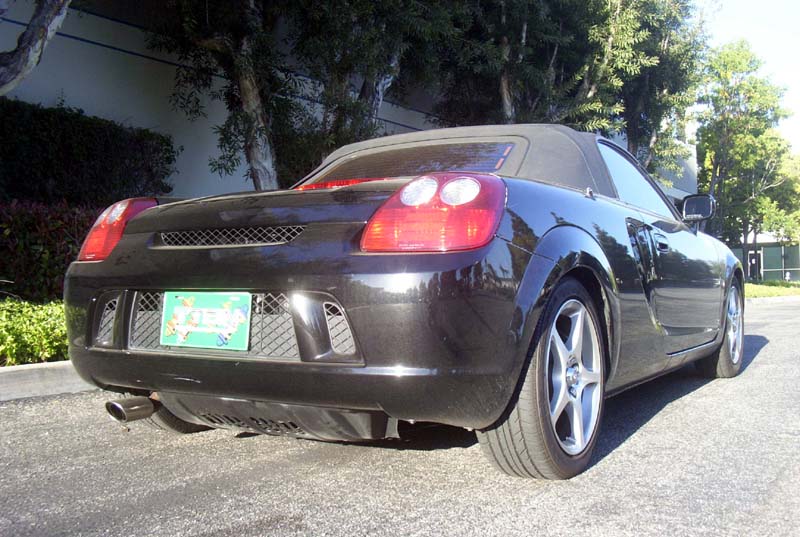

MR2 SPYDER 00+ ZZW30L

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -36  -1.42 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  1.9  110  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -21  -0.83 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -16  -0.63 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  1.7  100  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.6  150  - -
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-14140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -44  -1.73 -31.0 / -1.22 to -51.0 / -2.01 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -31.0 / -1.22 to -47.0 / -1.85
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3  170  SL030-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES
