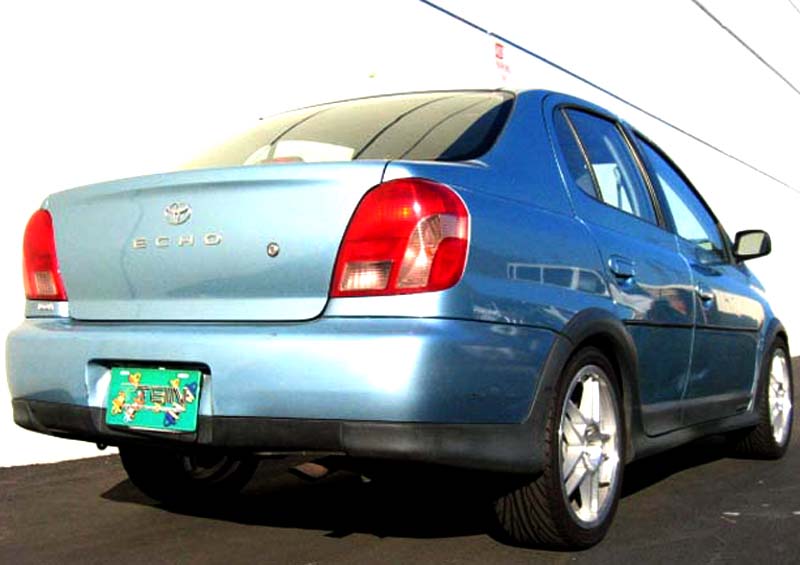

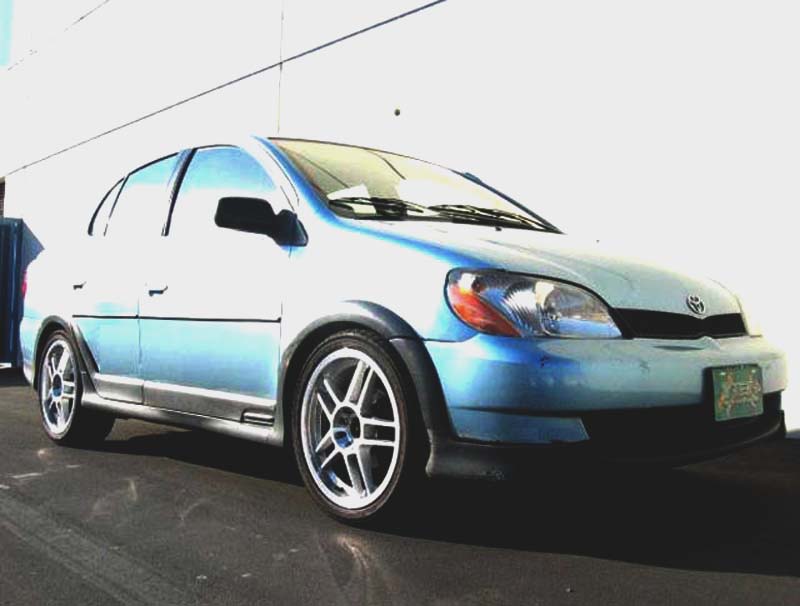

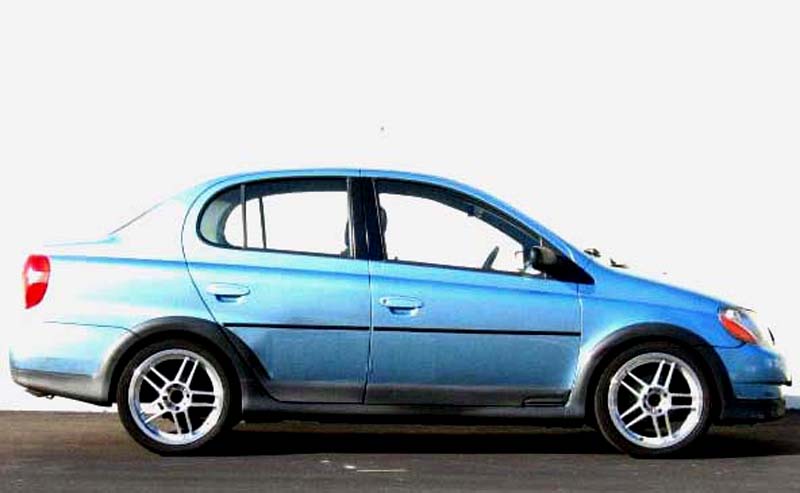

ECHO 00+ NCP12L

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -15  -0.59 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -17  -0.67 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.3  130  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.2  180  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -32  -1.26 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.6  150  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.2  180  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -22.0 / -0.87 to -50.0 / -1.97 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -34  -1.34 -21.0 / -0.83 to -56.0 / -2.2
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SY040-01225 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -22.0 / -0.87 to -50.0 / -1.97 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -34  -1.34 -21.0 / -0.83 to -56.0 / -2.2
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4  220  SY040-01225 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES
