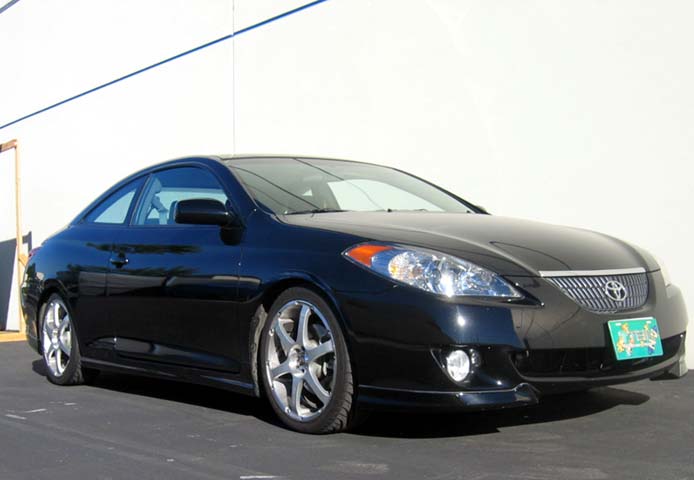

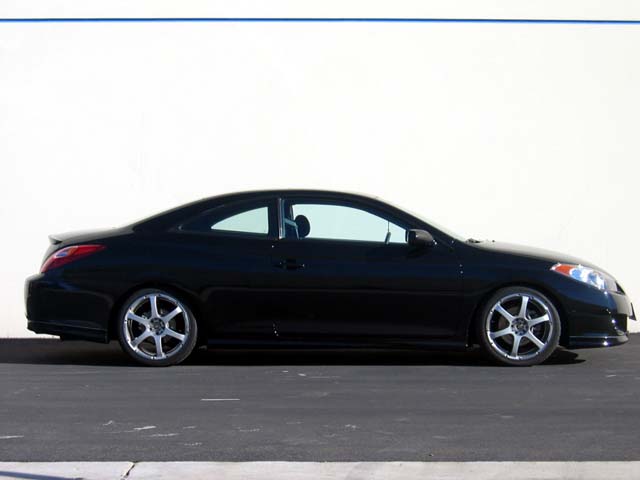

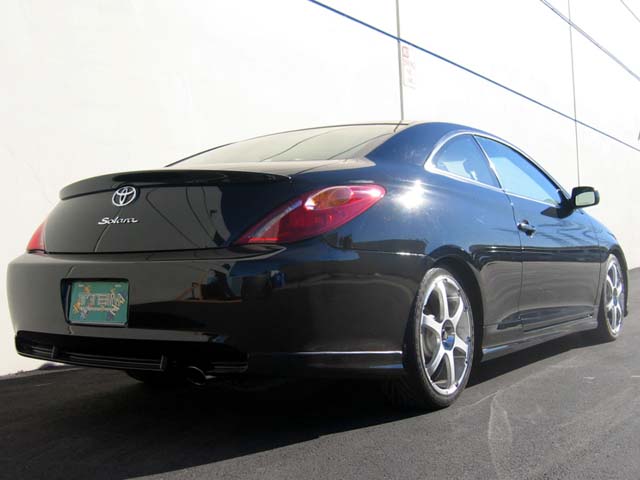

TOYOTA  SOLARA 04+ MCV31L
TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -53  -2.09 -51.0 / -2.01 to -76.0 / -2.99
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -56  -2.2 -55.0 / -2.17 to -75.0 / -2.95
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SY060-01225 +2.0 / +110.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3  170  SG030-01250 +2.0 / +110.0 to  /
NOTES
