MAZDA 6 04+ GG3P

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -59  -2.32 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -36  -1.42 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.7  260  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -44  -1.73 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -21  -0.83 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.3  240  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.6  150  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -58  -2.28 -15.0 / -0.59 to -77.0 / -3.03 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -36  -1.42 -13.0 / -0.51 to -48.0 / -1.89
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  8  450  SC080-01250 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5.8  320  0 0 / 0 to 0 / 0
NOTES

With Pillowball Uppermount	Upper Mt. Ft   Rubber Upper Mt. Rr   None
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -58  -2.28 -21.0 / -0.83 to -77.0 / -3.03 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -36  -1.42 -13.0 / -0.51 to -48.0 / -1.89
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  8  450  SC080-01250 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5.8  320  - 0 / 0 to 0 / 0
NOTES

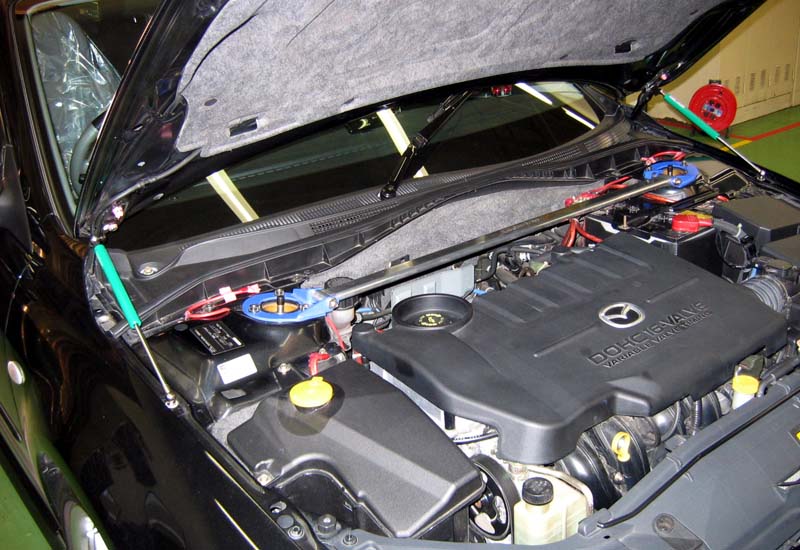

HOOD DAMPER	Upper Mt. Ft   - Upper Mt. Rr   -
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -  - - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -  - -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  -  -  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  -  -  - -
NOTES
