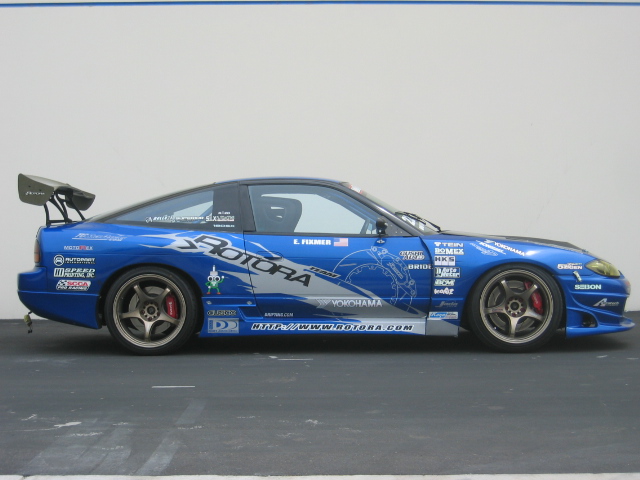

240SX 89-94 S13

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -37  -1.46 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -31  -1.22 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.7  210  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.2  180  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -22  -0.87 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -16  -0.63 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.3  180  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -46  -1.81 -26.0 / -1.02 to -64.54 / -2.54 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -55  -2.17 -27.0 / -1.06 to -73.18 / -2.88
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SL060-01200 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES Wheel spacers may be required when the OEM wheel / tire size is used.

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-10120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -46  -1.81 -26.0 / -1.02 to -65.0 / -2.56 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -55  -2.17 -27.0 / -1.06 to -74.0 / -2.91
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SL060-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES Wheel spacers may be required when the OEM wheel / tire size is used.

	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -59  -2.32 -28.0 / -1.1 to -80.0 / -3.15 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -56  -2.2 -36.0 / -1.42 to -77.0 / -3.03
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SL070-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  7  390  SV070-01225 +2.0 / +110.0 to -1.0 / -60.0
NOTES Wheel spacers may be required when the OEM wheel / tire size is used.

	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -46  -1.81 -15.0 / -0.59 to -77.0 / -3.03 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -55  -2.17 -25.0 / -0.98 to -76.0 / -2.99
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  10  560  SQ100-01175 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  8  450  SV080-01225 +2.0 / +110.0 to -1.0 / -60.0
NOTES Wheel spacers may be required when the OEM wheel / tire size is used.
