NISSAN
350Z 03+
Z33

S.TECH
Upper Mt. Ft:  None
Upper Mt. Rr:  None
EDFC Availability:NA
EDFC Part No.:  -

PHOTO FRONT PHOTO SIDE PHOTO REAR

RIDE HEIGHT
FRONT

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-17 / -0.67 -/- ⇔ -/-
REAR

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-14 / -0.55 -/- ⇔ -/-

SPRING
FRONT

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

6.9 390 - -/- ⇔ -/-
REAR

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

7.2 400 - -/- ⇔ -/-


HIGH.TECH
Upper Mt. Ft:  None
Upper Mt. Rr:  None
EDFC Availability:NA
EDFC Part No.:  -

PHOTO FRONT PHOTO SIDE PHOTO REAR

RIDE HEIGHT
FRONT

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-7 / -0.28 -/- ⇔ -/-
REAR

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-4 / -0.16 -/- ⇔ -/-

SPRING
FRONT

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

6.4 360 - -/- ⇔ -/-
REAR

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

6.7 370 - -/- ⇔ -/-


TYPE BASIC DAMPER
Upper Mt. Ft:  None
Upper Mt. Rr:  None
EDFC Availability:NA
EDFC Part No.:  -

PHOTO FRONT PHOTO SIDE PHOTO REAR

RIDE HEIGHT
FRONT

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-25 / -0.98 -1/-0.04 ⇔ -58.48/-2.3
REAR

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-21 / -0.83 3/0.12 ⇔ -26.95/-1.06

SPRING
FRONT

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

9 500 SH090-01200 +1.0/60 ⇔ -1.0/-60
REAR

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

9 500 S5P25-01090 +1.0/60 ⇔ 0/0


Type FLEX Damper
Upper Mt. Ft:  P/U(Rigid)
Upper Mt. Rr:  Rubber
EDFC Availability:Available
EDFC Part No.:  EDKU1-12120

PHOTO FRONT PHOTO SIDE PHOTO REAR

RIDE HEIGHT
FRONT

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-22 / -0.87 34/1.34 ⇔ -60/-2.36
REAR

Approx Lowering

Height Adjust Range

mm/inch

Max/Min(mm/inch)
-21 / -0.83 3/0.12 ⇔ -33/-1.3

SPRING
FRONT

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

12 670 SL120-01200 +4.0/220 ⇔ -2.0/-110
REAR

SPRING RATE/PART No.

Replacement Availability

kgf/mm

lbs/inch

Part #

Max/Min
(kgf/mm-lbs/inch)

12 670 S5P25-01120 0/0 ⇔ -3/-170

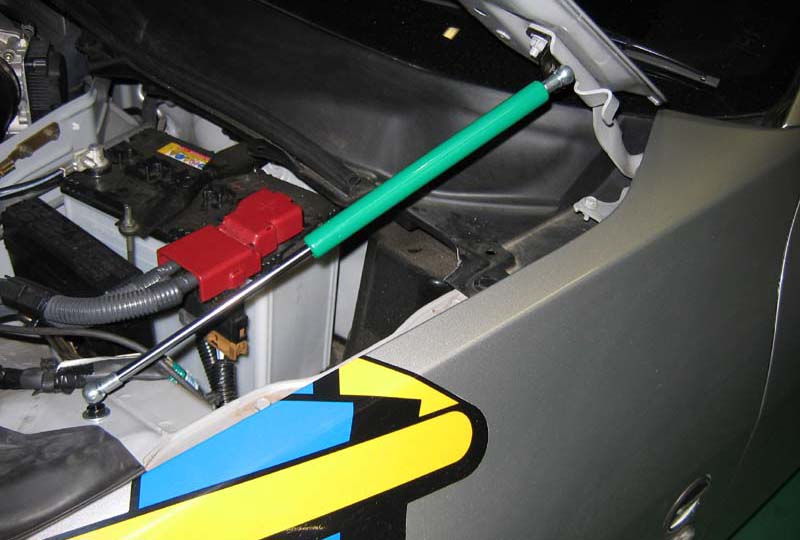

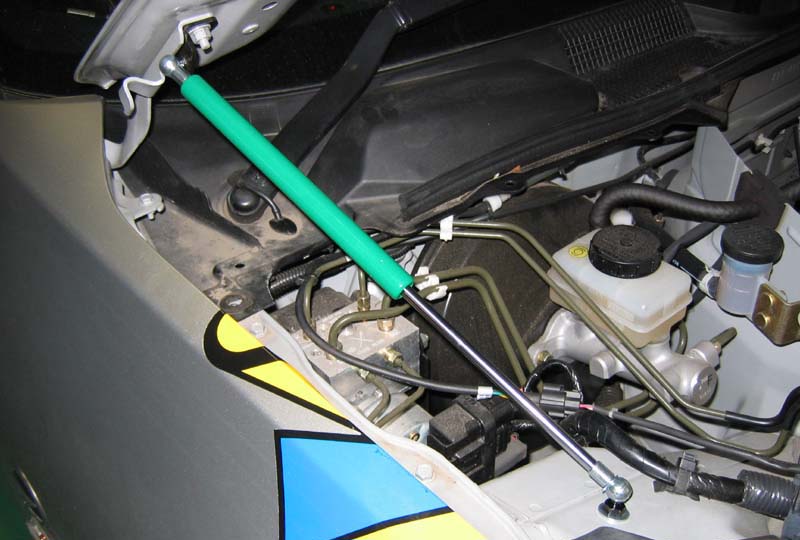

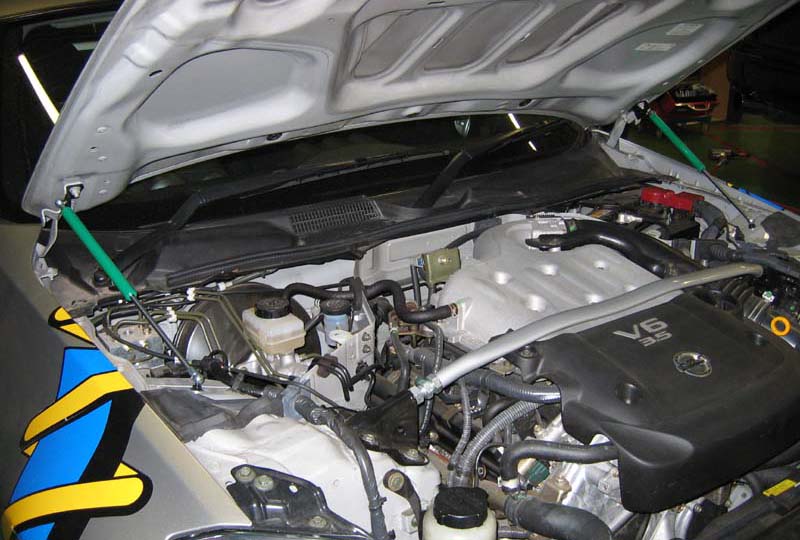

HOOD DAMPER

PHOTO PHOTO ZOOM (RIGHT) PHOTO ZOOM (LEFT)
