SCION  tC 11+ AGT20L
S.TECH
Upper Mt. Ft   - Upper Mt. Rr   -
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -

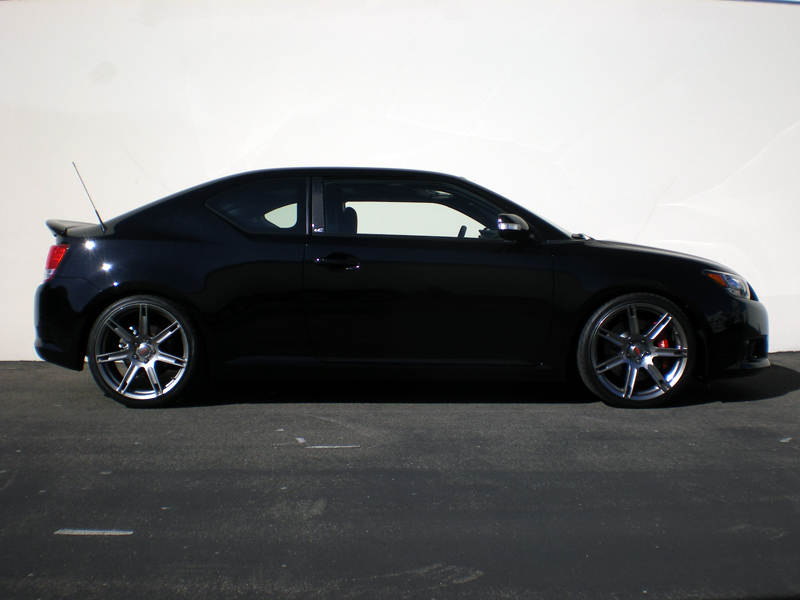

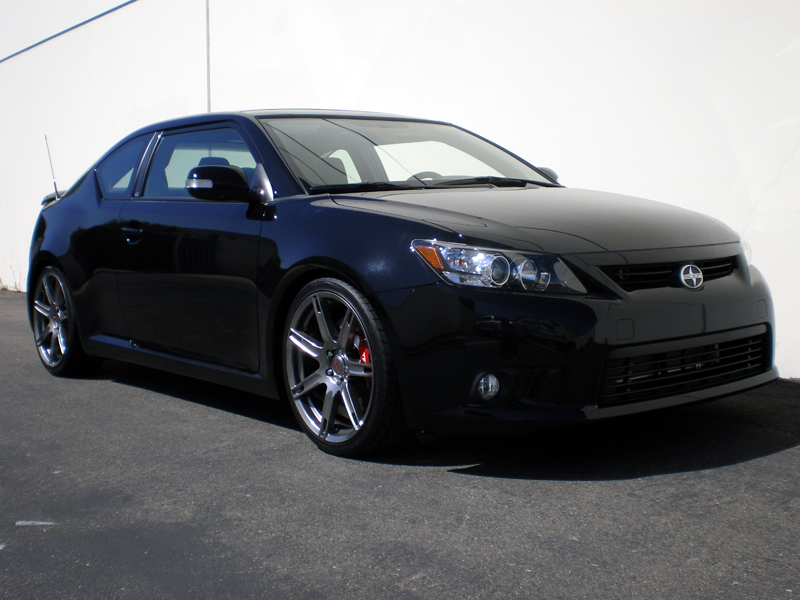

FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -46  -1.81 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.2  180  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.7  320  - -
NOTES


HIGH.TECH
Upper Mt. Ft   - Upper Mt. Rr   -
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -24  -0.94 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -31  -1.22 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 2.7  150  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.3  300  - -
NOTES


TEIN BASIC Damper
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -40  -1.57 -21.0 / -0.83 to -58.0 / -2.28
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -48  -1.89 -30.0 / -1.18 to -66.0 / -2.6
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  BD060-01225 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  S6Q31-0U060 -
NOTES


TEIN Super Street Damper
With Pillowball Uppermount
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   OEM
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12140
Strut Kit Part No. EDK06-K4474
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -40  -1.57 -26.0 / -1.02 to -58.0 / -2.28
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -48  -1.89 -30.0 / -1.18 to -66.0 / -2.6
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SB060-01200 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  S6Q31-0U060 -
NOTES
