SCION  PRIUS C 12+ NHP10
HIGH.TECH
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -

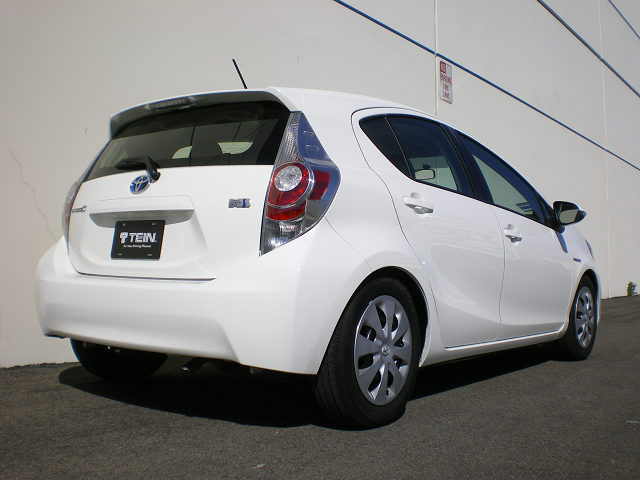

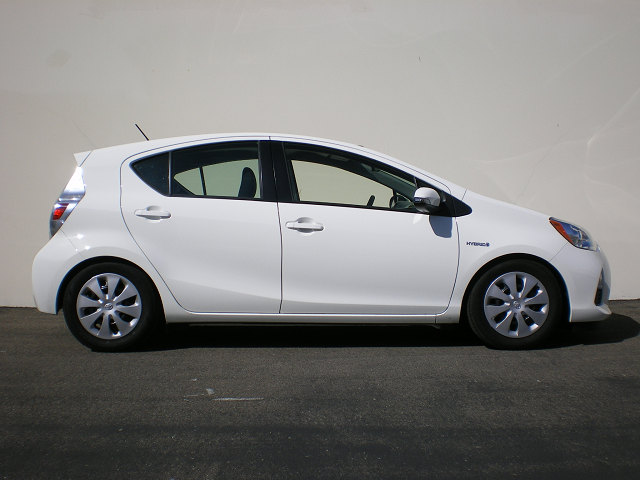

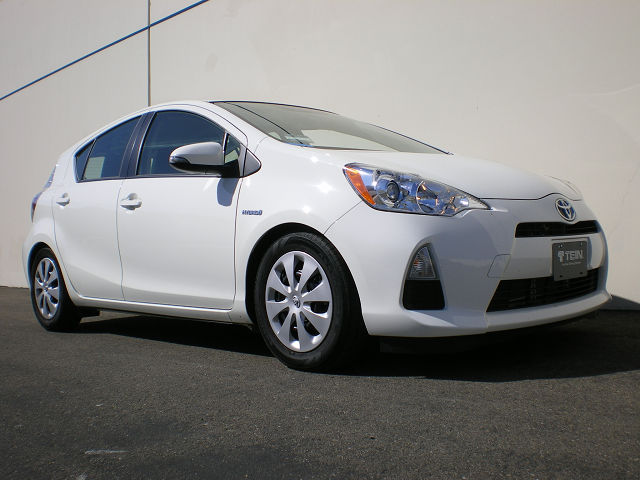

FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -36  -1.42 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -31  -1.22 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 2.8  160  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.2  180  - -
NOTES


Street Basis
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -

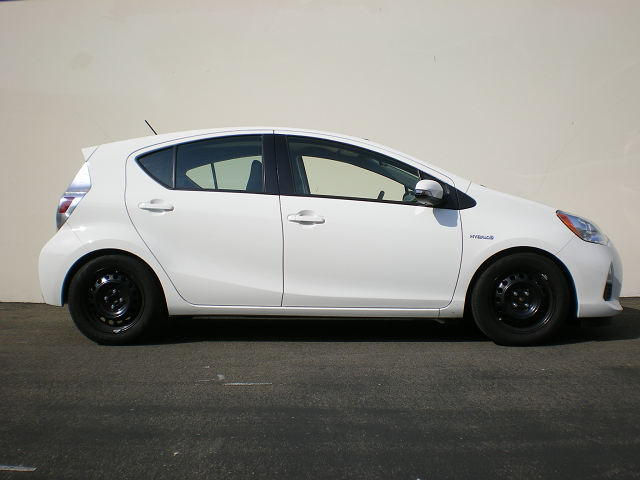

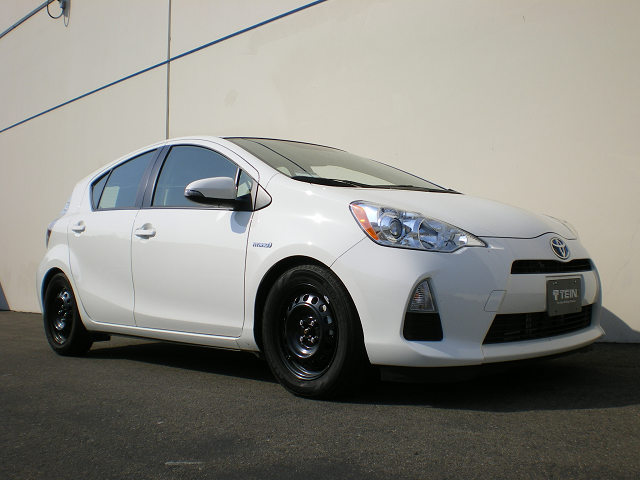

FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -23.0 / -0.91 to -64.0 / -2.52
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -37  -1.46 -22.0 / -0.87 to -55.0 / -2.17
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  S8C16-01040 +0.0 / +0.0 to -0.0 / -0.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.1  170  S5L71-01031 +0.0 / +0.0 to -0.0 / -0.0
NOTES


Street Advance
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -23.0 / -0.91 to -64.0 / -2.52
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -37  -1.46 -22.0 / -0.87 to -55.0 / -2.17
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4  220  S8C16-01040 +0.0 / +0.0 to -0.0 / -0.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.1  170  S5L71-01031 +0.0 / +0.0 to -0.0 / -0.0
NOTES
