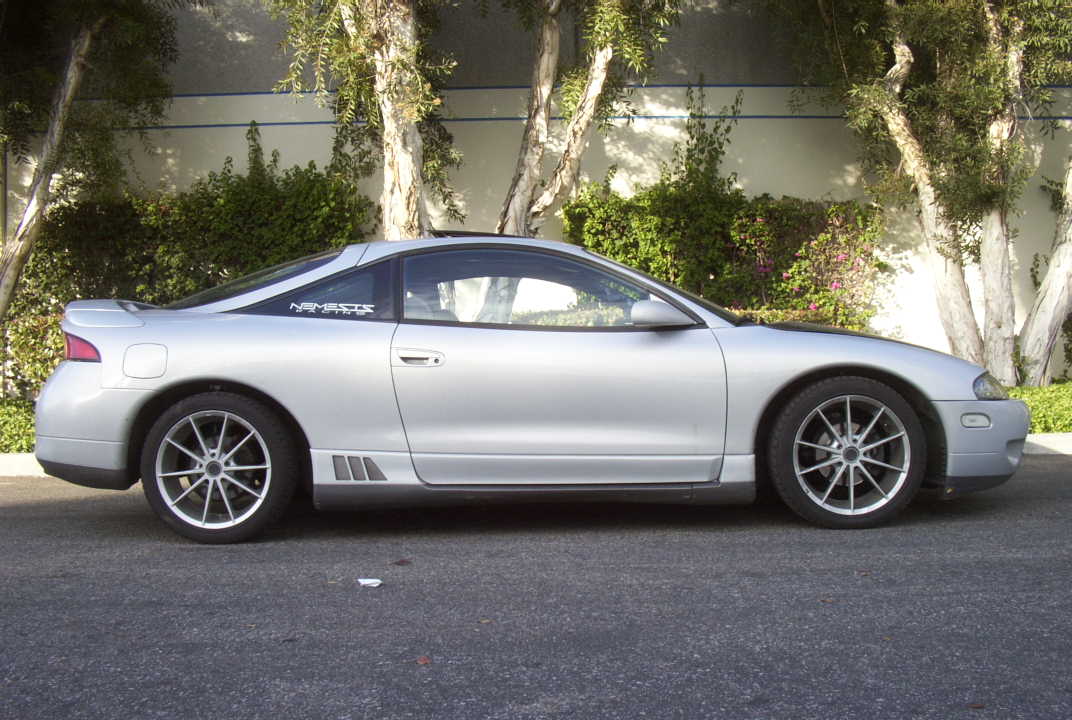

ECLIPSE 95-99 D31/32/38A

D31A	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -32  -1.26 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -34  -1.34 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.4  190  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2  110  - -
NOTES

D31A	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -22  -0.87 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -24  -0.94 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.7  210  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.3  130  - -
NOTES

D32A	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -32  -1.26 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -30  -1.18 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.4  190  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2  110  - -
NOTES

D32A	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -22  -0.87 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -20  -0.79 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.7  210  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.3  130  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -48  -1.89 -31.0 / -1.22 to -69.96 / -2.75 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -16.0 / -0.63 to -59.78 / -2.35
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SJ090-01200 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SJ060-01200 +1.0 / +60.0 to -1.0 / -60.0
NOTES

Without Pillowball Uppermount	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -48  -1.89 -31.0 / -1.22 to -70.0 / -2.76 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -16.0 / -0.63 to -60.0 / -2.36
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SJ090-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SJ060-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -48  -1.89 -32.0 / -1.26 to -70.0 / -2.76 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 -16.0 / -0.63 to -60.0 / -2.36
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SB090-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SB060-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

	Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -48  -1.89 -24.0 / -0.94 to -73.0 / -2.87 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -39  -1.54 -15.0 / -0.59 to -64.0 / -2.52
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  10  560  SB100-01200 +4.0 / +220.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SB060-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

HOOD DAMPER	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  0  0 0 / 0 to 0 / 0 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  0  0 0 / 0 to 0 / 0
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)       - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)       -
NOTES
