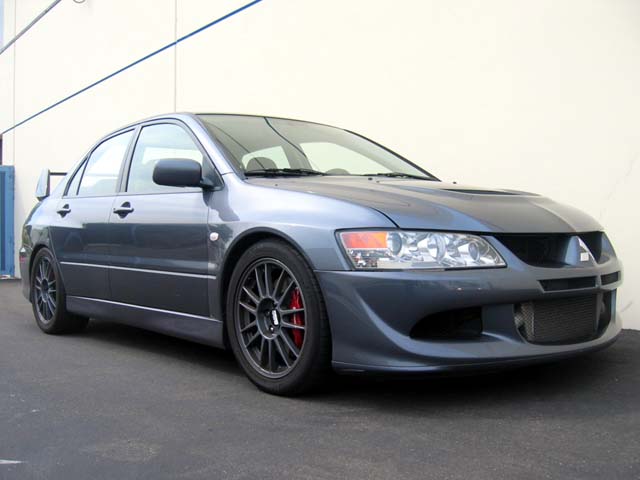

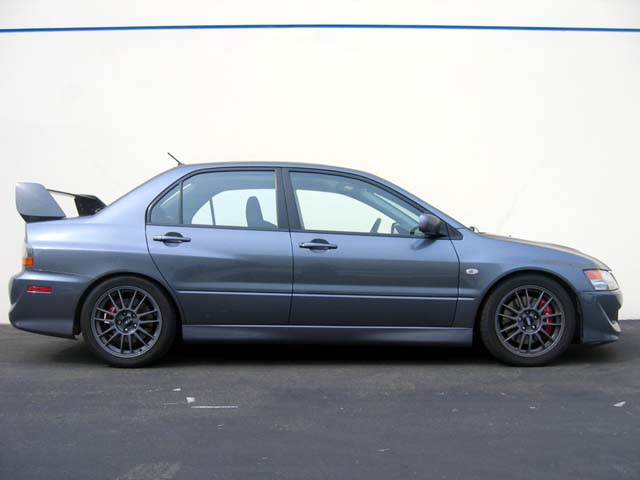

MITSUBISHI LANCER Evo VIII

LANCER Evo VIII 03-05 CT9A

Upper Mt. Ft OEM

Upper Mt. Rr OEM

EDFC Availability	Not Available
Controller Kit Part No.	-
Motor Kit Part No.	-
Strut Kit Part No.	-

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-45	-1.77	-

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-20	-0.79	-

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
3.8	210	-	-

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
5.2	290	-	-

NOTES

Upper Mt. Ft OEM

Upper Mt. Rr OEM

EDFC Availability	Not Available
Controller Kit Part No.	-
Motor Kit Part No.	-
Strut Kit Part No.	-

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-48	-1.89	-34.0 / - to -65.0 / -

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-17	-0.67	-2.0 / - to -37.0 / -

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
7	390	SV070-01225	-

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
6	340	SV060-01225	-

NOTES

Without Pillowball Uppermount

Upper Mt. Ft OEM

Upper Mt. Rr OEM

EDFC Availability	Available
Controller Kit Part No.	EDK04-K4469x2
Motor Kit Part No.	EDK05-10120(Rebound) / -(Compression)
Strut Kit Part No.	-(Rebound) / -(Compression)

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-48	-1.89	-34.0 / - to -65.0 / -

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-17	-0.67	-2.0 / - to -37.0 / -

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
7	390	SV070-01225	-

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
6	340	SV060-01225	-

NOTES

Upper Mt. Ft P/U(Adjustable)

Upper Mt. Rr P/U(Rigid)

EDFC Availability	Available
Controller Kit Part No.	EDK04-K4469
Motor Kit Part No.	EDK05-12140
Strut Kit Part No.	EDK06-K4474

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-46	-1.81	-9.0 / - to -71.0 / -

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-26	-1.02	+19.0 / - to -71.0 / -

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
12	670	SL120-01200	-

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
10	560	SL100-01200	-

NOTES

Upper Mt. Ft P/U(Adjustable)

Upper Mt. Rr P/U(Rigid)

EDFC Availability	Available
Controller Kit Part No.	EDK04-K4469
Motor Kit Part No.	EDK05-12120
Strut Kit Part No.	-

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-48	-1.89	-11.0 / -0.43 to -73.0 / -2.87

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-23	-0.91	+22.0 / +0.87 to -68.0 / -2.68

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
14	780	SL140-01200	+2.0 / +110.0 to -2.0 / -110.0

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
10	560	SL100-01200	+2.0 / +110.0 to -2.0 / -110.0

NOTES

Installation Manual

Upper Mt. Ft OEM

Upper Mt. Rr OEM

EDFC Availability	Not Available
Controller Kit Part No.	-x2
Motor Kit Part No.	-(Compression)
Strut Kit Part No.	-(Compression)-(Bound)

RIDE HEIGHT

FRONT
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-57	-2.24	-32.0 / -1.26 to -77.0 / -3.03

REAR
Approx.		Height Adjust Range
mm	inch	Max/Min(mm/inch)
-39	-1.54	-2.0 / -0.08 to -89.0 / -3.5

SPRING

FRONT
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
14	780	RS140-B1175	+2.0 / +110.0 to -2.0 / -110.0

REAR
SPRING RATE / PART No.			Replacement Availability
kgf/mm	lbs/in	Part #	Max/Min(kgf/mm-lbs/in)
12	670	RS120-B1175	+2.0 / +110.0 to -2.0 / -110.0

NOTES
