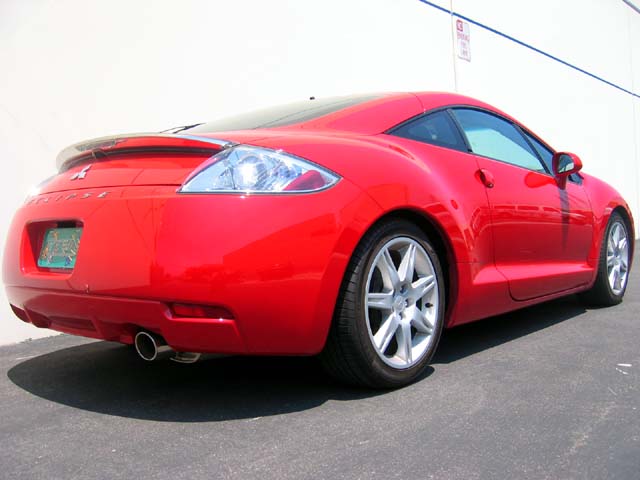

ECLIPSE 06-12 DK4A

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -63  -2.48 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -66  -2.6 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.6  260  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.2  180  - -
NOTES

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -48  -1.89 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -51  -2.01 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  4.2  230  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3  170  - -
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   Rubber
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -54  -2.13 -45.0 / -1.77 to -74.0 / -2.91 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -54  -2.13 -17.0 / -0.67 to -74.0 / -2.91
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SB090-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SY050-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES
