SUBARU  IMPREZA WRX SPORT WAGON 04-07 (GGA/GGB)

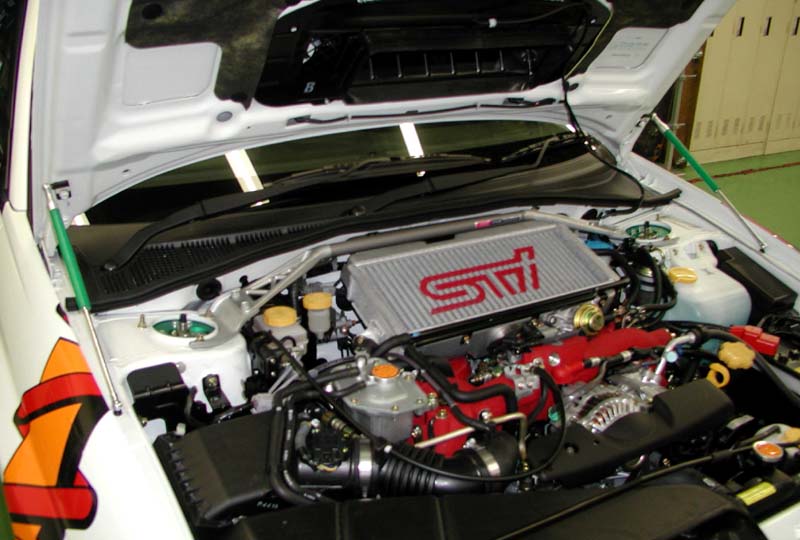

HOOD DAMPER
Upper Mt. Ft   - Upper Mt. Rr   -
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
PHOTO  RIGHT  LEFT
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -  - -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -  - -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 -  -  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 -  -  - -
NOTES


S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -

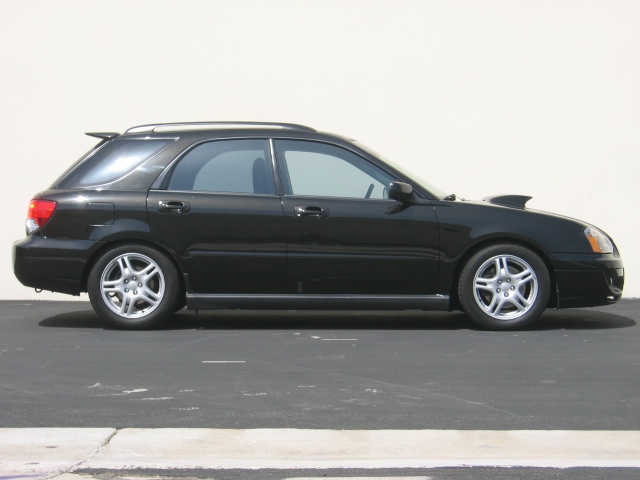

FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -38  -1.5 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.5  250  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.9  220  - -
NOTES


HIGH.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -26  -1.02 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -23  -0.91 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.1  230  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.5  200  - -
NOTES


Street basis
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -42  -1.65 -14.0 / -0.55 to -63.0 / -2.48
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -34  -1.34 -12.0 / -0.47 to -52.0 / -2.05
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SC050-01250 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SY050-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES


Street Advance
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -42  -1.65 -1.0 / -0.04 to -3.0 / -0.12
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -34  -1.34 -1.0 / -0.04 to -2.0 / -0.08
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SC050-01250 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SY050-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES


TEIN Super Street Damper
Without Pillowball Uppermount
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -48  -1.89 -36.0 / -1.42 to -62.0 / -2.44
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -25  -0.98 -4.0 / -0.16 to -39.0 / -1.54
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SC050-01250 -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SY050-01225 -
NOTES


TEIN Super Street Damper
With Pillowball Uppermount
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-14140
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -45  -1.77 -12.0 / -0.47 to -59.0 / -2.32
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -38  -1.5 -28.0 / -1.1 to -50.0 / -1.97
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SC050-01250 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5  280  SY050-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   Rubber
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-12140
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -46  -1.81 -14.0 / -0.55 to -78.0 / -3.07
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -38  -1.5 -11.0 / -0.43 to -65.0 / -2.56
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 10  560  SW100-01175 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SB080-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES
