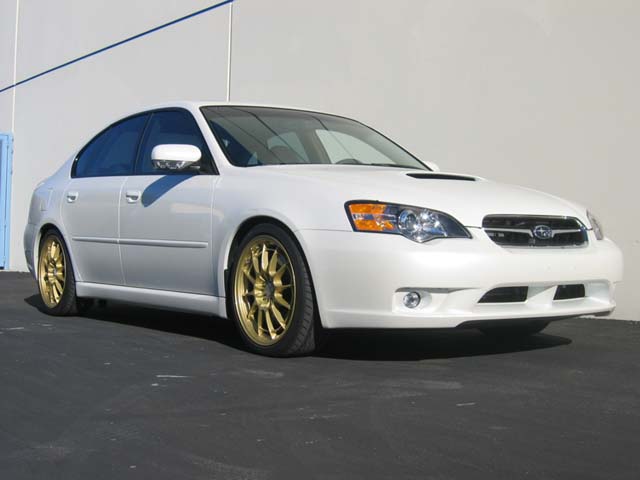

SUBARU  LEGACY 05+ BL9
S.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -37  -1.46 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 4.2  230  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  - -
NOTES


HIGH.TECH
Upper Mt. Ft   None Upper Mt. Rr   None
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -24  -0.94 -
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -22  -0.87 -
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 3.9  220  - -
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 5.5  310  - -
NOTES


TEIN BASIC Damper
Upper Mt. Ft   OEM Upper Mt. Rr   OEM
EDFC Availability Not Available
Controller Kit Part No. -
Motor Kit Part No. -
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -39  -1.54 -18.0 / -0.71 to -51.0 / -2.01
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -37  -1.46 +13.0 / +0.51 to -59.0 / -2.32
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 6  340  SY060-01225 +1.0 / +60.0 to -1.0 / -60.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 7  390  SV070-01225 +1.0 / +60.0 to -1.0 / -60.0
NOTES


Type FLEX Damper
Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
EDFC Availability Available
Controller Kit Part No. EDK04-K4469
Motor Kit Part No. EDK05-10140
Strut Kit Part No. -
FRONT  SIDE  REAR
RIDE HEIGHT
FRONT
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -23.0 / -0.91 to -60.0 / -2.36
REAR
Approx. Height Adjust Range
mm inch Max/Min(mm/inch)
 -41  -1.61 -8.0 / -0.31 to -75.0 / -2.95
SPRING
FRONT
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 8  450  SB080-01200 +2.0 / +110.0 to -2.0 / -110.0
REAR
SPRING RATE / PART No. Replacement Availability
kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)
 9  500  SQ090-01175 +1.0 / +60.0 to -2.0 / -110.0
NOTES
