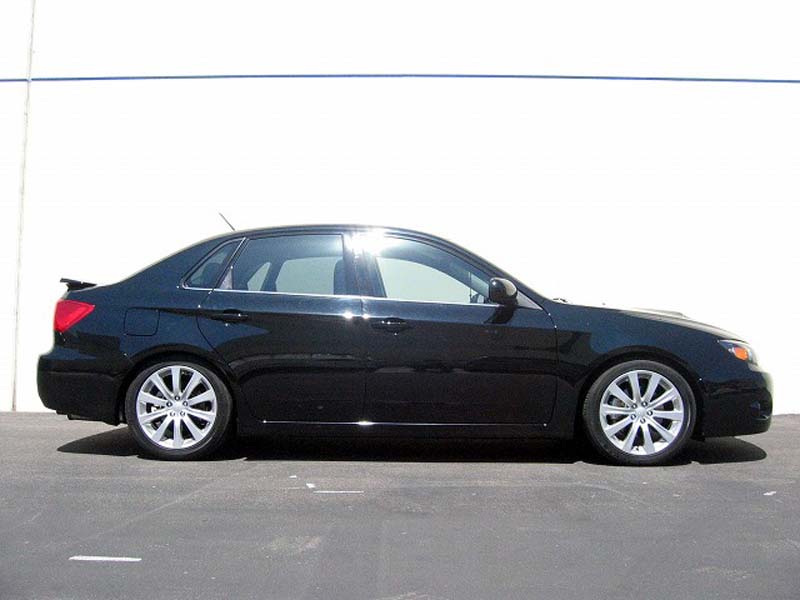

IMPREZA WRX 4Dr 08+ GEE

	Upper Mt. Ft   None Upper Mt. Rr   None
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -38  -1.5 - REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -40  -1.57 -
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  3.1  170  - - REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  2.9  160  - -
NOTES

	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Not Available Controller Kit Part No. - Motor Kit Part No. - Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -39  -1.54 -30.0 / -1.18 to -64.0 / -2.52 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -33  -1.3 -21.0 / -0.83 to -66.0 / -2.6
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +1.0 / +60.0 to -1.0 / -60.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  S8034-01050 -
NOTES

With Pillowball Uppermount	Upper Mt. Ft   P/U(Adjustable) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12140 Strut Kit Part No. EDK06-K4474
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -36  -1.42 -26.0 / -1.02 to -61.0 / -2.4 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -33  -1.3 +15.0 / +0.59 to -66.0 / -2.6
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SY060-01225 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  5  280  SY050-01225 +2.0 / +110.0 to -1.0 / -60.0
NOTES
