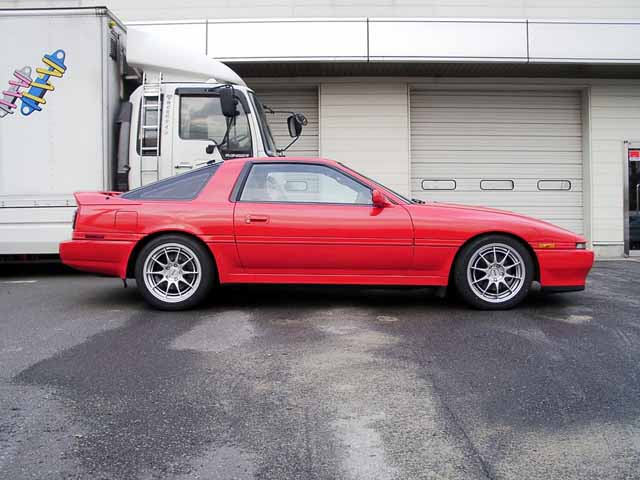

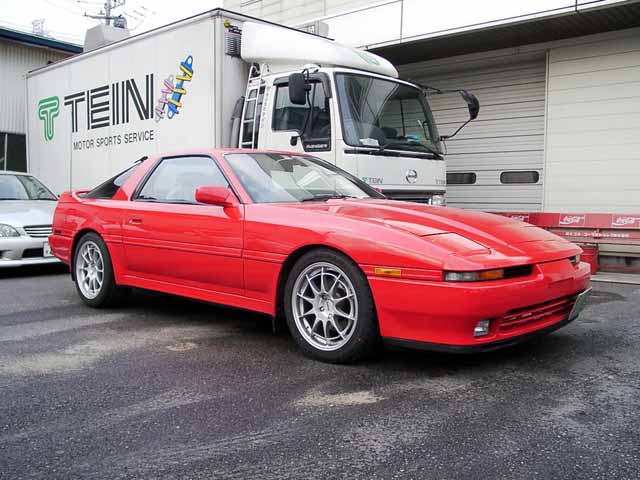

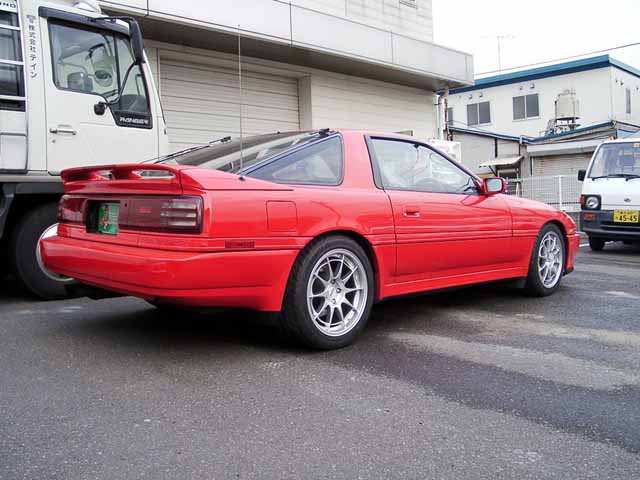

SUPRA 87-92 JZA70L

Without Pillowball Uppermount	Upper Mt. Ft   OEM Upper Mt. Rr   OEM
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -45  -1.77 -29.0 / -1.14 to -74.0 / -2.91 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -34  -1.34 -13.0 / -0.51 to -62.0 / -2.44
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  16  900  SH160-01200 +2.0 / +110.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  9  500  SJ090-01200 +2.0 / +110.0 to -2.0 / -110.0
NOTES

	Upper Mt. Ft   P/U(Rigid) Upper Mt. Rr   P/U(Rigid)
	EDFC Availability Available Controller Kit Part No. EDK04-K4469 Motor Kit Part No. EDK05-12120 Strut Kit Part No. -
RIDE HEIGHT FRONT Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -32  -1.26 +16.0 / +0.63 to -80.0 / -3.15 REAR Approx. Height Adjust Range mm inch Max/Min(mm/inch)  -27  -1.06 +7.0 / +0.28 to -61.0 / -2.4
SPRING FRONT SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  12  670  SL120-01200 +4.0 / +220.0 to -2.0 / -110.0 REAR SPRING RATE / PART No. Replacement Availability kgf/mm lbs/in Part # Max/Min(kgf/mm-lbs/in)  6  340  SV060-01225 +2.0 / +110.0 to -2.0 / -110.0
NOTES
